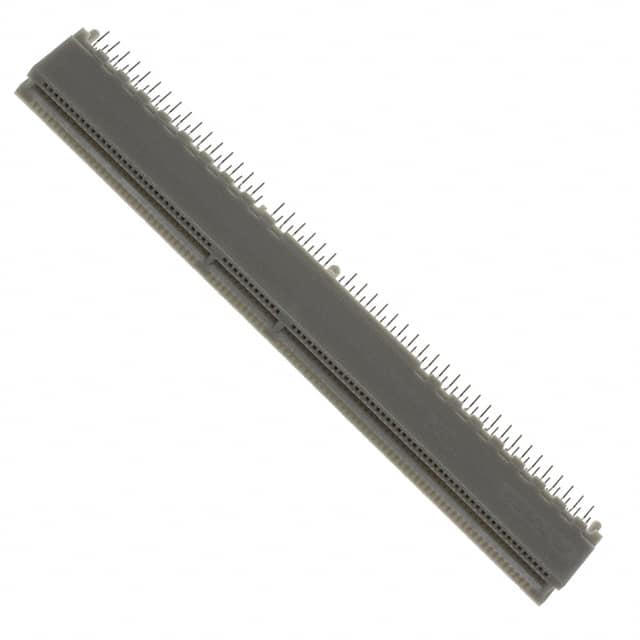

The TE Connectivity 5145166-8 is a board-to-board PCI card edge connector designed for 5V 64-bit PCI bus applications. It features 184 positions arranged in a dual-row configuration with a 1.27mm centerline pitch. The connector is female and accepts a 1.57mm thick PCB. Contacts are made of phosphor bronze with gold plating in the mating area (0.76µm thickness) and tin plating on the termination area. The housing is natural-colored high-temperature thermoplastic. Termination is through-hole solder with a post and tail length of 3.18mm. The connector includes three PCB mount retention features and a board guide. It is rated for 1.1A per contact and 203 VAC operating voltage, with an operating temperature range of -55°C to 85°C. The product weighs 26.406g and is packaged in boxes of 35 pieces.
| Qty | Low | High |
|---|---|---|
| 15+ | $5.58 | $5.58 |
| 75+ | $4.87 | $4.87 |
| 180+ | $4.75 | $4.75 |
| 315+ | $4.63 | $4.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 184 positions total, arranged in a dual-row configuration.
The centerline pitch is 1.27 mm (0.050 in).
The maximum contact current rating is 1.1 A.
The operating voltage is 203 VAC.
The connector is board mount with through-hole solder termination.
The operating temperature range is -55°C to 85°C.
It is designed for PCI 5V 64-bit cards.
