| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Read Out | |
| Termination |

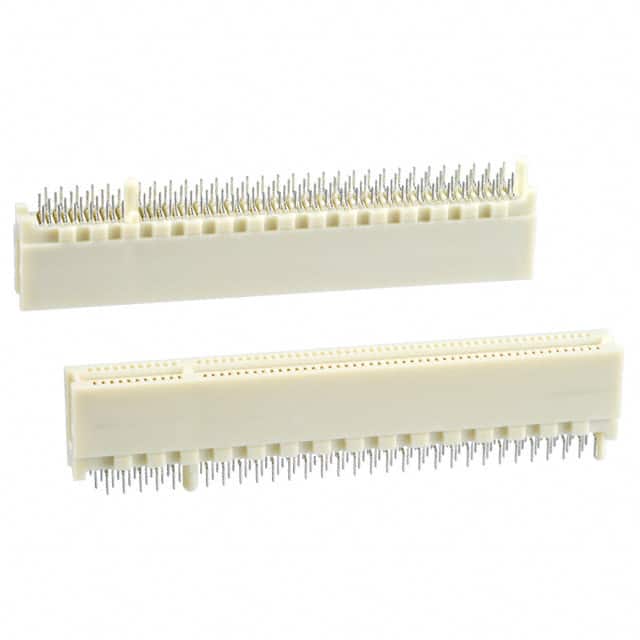

The TE Connectivity 5145154-4 is a PCI card edge connector designed for use in computer and peripheral applications. It features a female gender with 120 positions arranged in a dual readout configuration on a 0.050" (1.27mm) pitch. The connector is through-hole mounted and has staggered solder termination for reliable electrical connections. The contacts are made of phosphor bronze with a gold finish thickness of 30.0µin, ensuring good conductivity and corrosion resistance. The connector includes a board guide feature to facilitate alignment during mating. It is designed to accommodate a card thickness of 0.062" (1.57mm) and is suitable for PCI bus interface applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.70 | $6.70 |
| 10+ | $5.69 | $5.69 |
| 35+ | $5.21 | $5.21 |
| 70+ | $4.96 | $4.96 |
| 105+ | $4.82 | $4.82 |
| 280+ | $4.50 | $4.50 |
| 525+ | $4.30 | $4.30 |
| 1,015+ | $4.11 | $4.11 |
| 2,520+ | $3.85 | $3.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions
0.050" (1.27mm)
Through hole
Gold, 30.0µin thickness
0.062" (1.57mm)
Female
Board guide
