5145098-1 PCI card edge connector, female, 120 positions (11+49), 0.050" pitch, surface mount, gold plated phosphor bronze contacts.
Mfr Part #:

5145098-1

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
PCI card edge connector, female, 120 positions (11+49), 0.050" pitch, surface mount, gold plated phosphor bronze contacts.
✓ Total Stock: 7,222 pcs
$ Price Range: $5.69 - $9.28

5145098-1 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
6,928 pcs
On Request
6928 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
260 pcs
On Request
260 pcs On Request 1 On Request On Request 05+37 On Request On Request
Husky International Electronic ✓
Non-Authorised Inventory information
34 pcs
On Request
34 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5145098-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Features
Gender
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Read Out
Termination
Termination Style
View Similar Products (0)

5145098-1 Description

Short technical summary and product information.

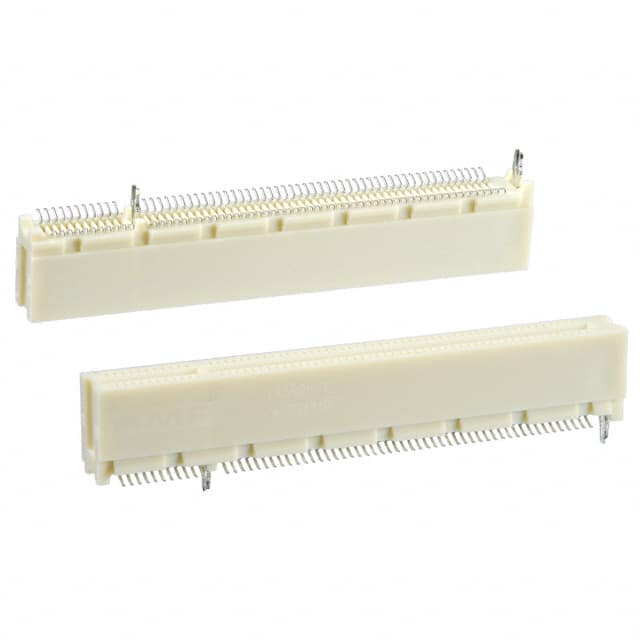

The 5145098-1 is a PCI card edge connector from TE Connectivity designed for surface mount applications. It features a female gender with dual readout and accommodates a card thickness of 0.062" (1.57mm). The connector has 120 total positions arranged in two rows with a 0.050" (1.27mm) pitch. Contacts are made of phosphor bronze with 30.0µin (0.76µm) gold finish for reliable electrical performance. The natural color housing includes a board lock feature for secure attachment to the PCB. Termination is via solder, and the connector is RoHS3 compliant and REACH unaffected. This connector is suitable for PCI bus interface applications in computing and industrial electronics.

5145098-1 Quick Information

Product Type: Card Edge Connector
Series: PCI
Canonical Name: TE Connectivity PCI Card Edge Connector, Female, 120 Positions, 0.050" Pitch, Surface Mount
Subcategory: PCI Connector

5145098-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

5145098-1 Estimated Pricing

Qty Low High
1+ $9.28 $9.28
10+ $7.89 $7.89
32+ $7.26 $7.26
64+ $6.92 $6.92
128+ $6.59 $6.59
256+ $6.27 $6.27
512+ $5.97 $5.97
1,024+ $5.69 $5.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

5145098-1 Features

  • Female PCI card edge connector, 120 positions.
  • 0.050" (1.27mm) pitch, dual row readout.
  • Gold plated phosphor bronze contacts, 30µin.
  • Surface mount termination with board lock.
  • RoHS3 compliant and REACH unaffected.

5145098-1 Applications

  • PCI bus interface in desktop computers.
  • Industrial computing and embedded systems.
  • Test and measurement equipment backplanes.

5145098-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the 5145098-1 connector?

The pitch is 0.050" (1.27mm).

How many positions does the 5145098-1 have?

It has 120 positions total, arranged as 11 and 49 in two rows.

What is the mounting type for this connector?

Surface mount.

What contact finish is used on the 5145098-1?

Gold, with a thickness of 30.0µin (0.76µm).

What card thickness does this connector support?

0.062" (1.57mm).

Is the 5145098-1 RoHS compliant?

It is listed as RoHS3 compliant, though this is unverified.
