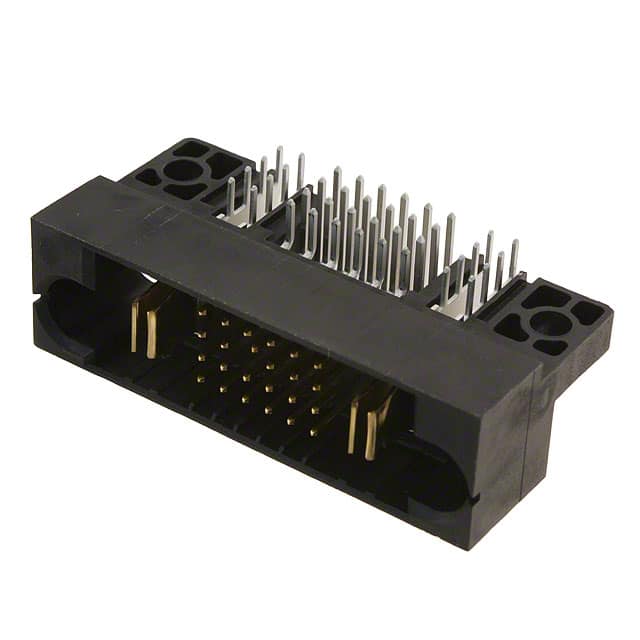

51415-001LF Right-angle blade power header with 26 positions (24 signal, 2 power) and 2.54mm pitch. Features gold-plated contacts and a board-edge mount for high-density backplane designs.
Mfr Part #:

51415-001LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Right-angle blade power header with 26 positions (24 signal, 2 power) and 2.54mm pitch. Features gold-plated contacts and a board-edge mount for high-density backplane designs.
✓ Total Stock: 2,182 pcs
$ Price Range: $4.36 - $6.49

51415-001LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,182 pcs
On Request
2182 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

51415-001LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Layout, Typical
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Tape & Reel
Termination
Termination Style
View Similar Products (0)

51415-001LF Description

Short technical summary and product information.

51415-001LF is a 26-position blade power header from Amphenol ICC, designed for board-edge mounting in backplane systems. The connector combines 24 signal contacts with 2 power contacts in a 4-row configuration, providing a compact solution for mixed-signal and power distribution. The 2.54mm pitch supports high-density PCB layouts.



Mounting is right-angle through-hole with solder termination, making it suitable for card-edge or mid-plane applications. The header features gold or gold GXT™ contact finish with 30.0µin thickness, ensuring reliable electrical performance. An integrated mating guide aids alignment during connector engagement. The black housing is designed for durability in demanding environments.



This connector fits within the specialized backplane connector category and is commonly used in industrial computing, networking, and telecom equipment. Its blade power style allows simultaneous transmission of signal and power lines in one connector.

51415-001LF Quick Information

Product Type: Blade Power Connector Header
Canonical Name: 26-Position Blade Power Header
Subcategory: Specialized Backplane Connectors

51415-001LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

51415-001LF Estimated Pricing

Qty Low High
1+ $6.49 $6.49
10+ $5.52 $5.52
44+ $4.97 $4.97
88+ $4.73 $4.73
132+ $4.60 $4.60
264+ $4.38 $4.38
528+ $4.36 $4.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

51415-001LF Features

  • 26 positions with 4-row configuration.
  • 2.54mm pitch for dense layouts.
  • Right-angle through-hole solder mount.
  • Gold GXT contact finish, 30.0µin.
  • Mating guide for easier alignment.

51415-001LF Applications

  • Board edge mounting for backplane boards.
  • Suitable for power and signal distribution.
  • Used in high-density computing systems.

51415-001LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 51415-001LF have?

The connector has 26 positions.

What is the pitch of this connector?

Pitch is 2.54mm (0.100 inches).

How many rows are in the 51415-001LF?

It has 4 rows.

What is the contact layout?

24 signal contacts and 2 power contacts.

What mounting type is used?

Board edge, through hole, right angle mounting.

What is the contact finish?

Gold or gold GXT™ with 30.0µin thickness.

Does it include a mating guide?

Yes, it features a mating guide.
