514-AG10D 14-position DIP IC socket with gold contacts, 2.54mm pitch, through-hole mounting. Suitable for 0.3" row spacing.
Mfr Part #:

514-AG10D

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
14-position DIP IC socket with gold contacts, 2.54mm pitch, through-hole mounting. Suitable for 0.3" row spacing.
✓ Total Stock: 4 pcs
$ Price Range: $3.06 - $5.26

514-AG10D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

514-AG10D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions or Pins (Grid)
Operating Temperature
Operating Temperature Range
Package / Case
Pitch
Termination
Termination Style
Type
View Similar Products (0)

514-AG10D Description

Short technical summary and product information.

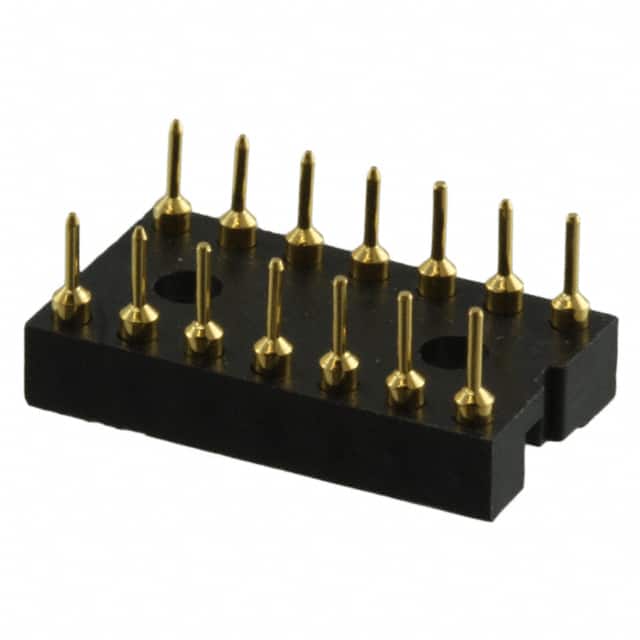

The 514-AG10D is a 14-position DIP IC socket from TE Connectivity designed for through-hole mounting. It features a 2x7 grid arrangement with 2.54mm pitch and 0.3" (7.62mm) row spacing, making it compatible with standard 14-pin DIP ICs. The socket uses a closed frame design and copper alloy contacts with a gold finish for reliable electrical connections. It operates over a temperature range of -55°C to 125°C, suitable for various industrial and commercial applications. The solder termination style ensures robust attachment to the PCB.

514-AG10D Quick Information

Product Type: IC Socket
Canonical Name: 14 Position DIP IC Socket, 0.3" Row Spacing, Through Hole, Gold Contacts
Subcategory: IC Sockets

514-AG10D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

514-AG10D Estimated Pricing

Qty Low High
15+ $5.26 $5.26
75+ $5.04 $5.04
300+ $4.85 $4.85
1,360+ $3.06 $3.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

514-AG10D Features

  • 14 positions arranged in 2x7 grid.
  • Gold plated contacts for reliability.
  • Through-hole solder termination.
  • Closed frame design for secure IC retention.
  • Operating temperature range -55°C to 125°C.

514-AG10D Applications

  • Used for prototyping DIP ICs.
  • Suitable for 0.3" wide IC packages.
  • Ideal for production socketing applications.

514-AG10D FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this socket have?

14 positions arranged in a 2x7 grid.

What is the pin pitch?

2.54mm (0.100").

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Copper alloy with gold finish.

Does the socket have a closed frame?

Yes, closed frame design.
