| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
645 pcs
|
645 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Form | |
| Contact Plating | |
| Contact Rating @ Voltage | |
| Current Rating | |
| Features | |
| Height | |
| Illumination | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style | |
| Type | |
| Width |

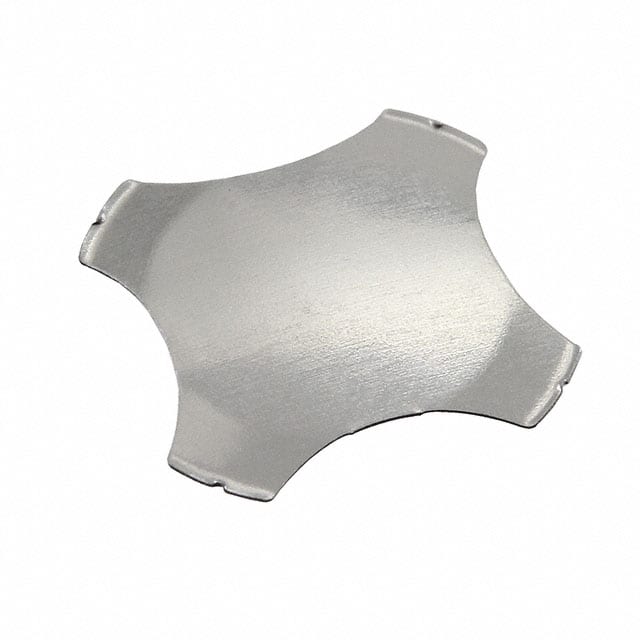

The Keystone Electronics 5135TR is a tactile switch designed for surface mount applications. It features a SPST-NO circuit configuration and a snap dome actuator type.
This switch is rated for a current of 12mA at 24VDC, with an operating force of 340gf. The dimensions are 7mm x 7mm, with a stem height of 0.55mm. The operating temperature range is from -40°C to 105°C.
It is a non-illuminated switch with a flex membrane feature and nickel contact plating. The termination style is SMD (SMT) Tab, and it is mounted straight.
This component is suitable for various electronic applications requiring a reliable tactile switching solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5135TR tactile switch is rated for 12mA at 24VDC.
The operating temperature range for the 5135TR is -40°C to 105°C.
The 5135TR tactile switch requires surface mounting.
The 5135TR tactile switch has a SPST-NO circuit configuration.
The 5135TR tactile switch is supplied in Cut Tape, Reel packaging.
