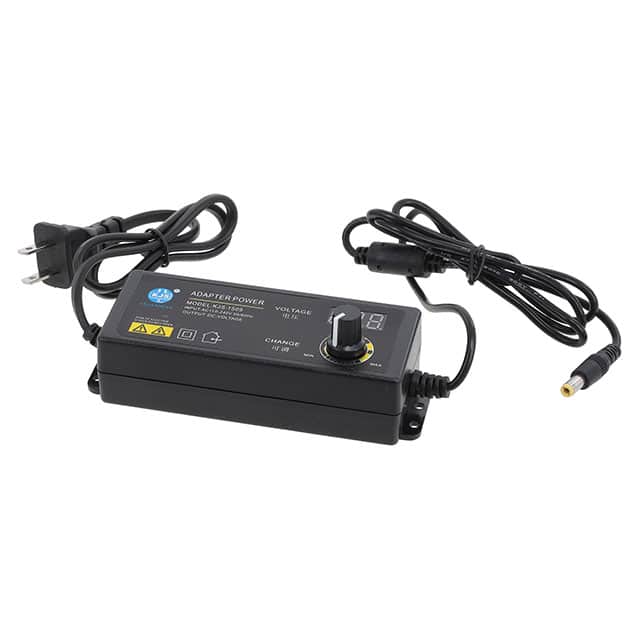

The Adafruit Industries LLC 5130 is a versatile adjustable power supply designed for various electronics projects. It provides a continuously adjustable output voltage from 3V to 24V DC, with a maximum current capacity of 2.5A. The input is a standard NEMA 1-15P plug, and the output is delivered via a 2.1mm inner diameter by 5.5mm outer diameter barrel jack.
This power supply is housed in a Desktop (Class II) form factor, making it suitable for benchtop use. It includes a 42-inch (1.07m) cord for convenient placement. The unit is designed for ITE (Commercial) applications and is configured for the North American region.
With its adjustable voltage and sufficient current, the 5130 is a practical tool for makers and engineers working on robotics, LED projects, or general electronics prototyping where specific voltage requirements need to be met. Its dimensions are 118.0mm x 50.0mm x 32.0mm.
The input voltage range is 100-240V AC at 50-60Hz.
The output voltage is adjustable from 3 to 24V DC.
The output current is rated at 2A per the manufacturer, with an alternative rating of 2.5A from another source.
The input connector is a NEMA 1-15P plug.
The output connector is a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter.
The adapter is a desktop (Class II) unit.
The dimensions are 118.0mm x 50.0mm x 32.0mm (4.65" x 1.97" x 1.26").
