| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

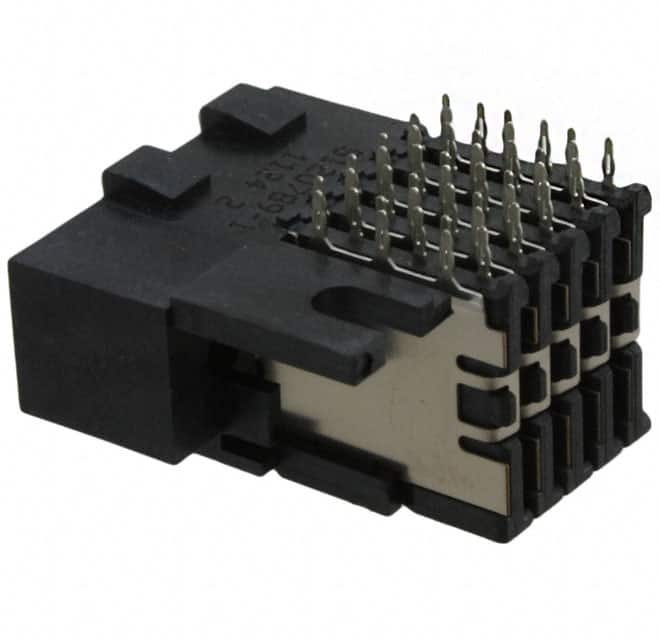

The TE Connectivity 5120789-1 is a 30 position backplane connector featuring a receptacle with female sockets in a dual beam left side configuration. All 30 positions are loaded, arranged in 6 rows and 5 columns on a 2.50mm (0.098") pitch. The connector is designed for through hole, right angle mounting with press-fit termination for reliable solderless board attachment.
Contact surfaces are finished with 30.0µin (0.76µm) gold, providing excellent corrosion resistance and consistent electrical performance. This connector is intended for backplane usage, enabling dense signal routing in rack-mounted systems, telecom equipment, and enterprise computing platforms.
The package is through hole, right angle — appropriate for perpendicular board-to-backplane connections in high-reliability environments. RoHS3 compliant and REACH unaffected per manufacturer designation (unverified). ECCN is a placeholder and should be independently verified.
| Qty | Low | High |
|---|---|---|
| 7,800+ | $16.86 | $16.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 30 positions, all loaded.
The pitch is 2.50mm (0.098").
Mounting is through hole, right angle with press-fit termination.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
