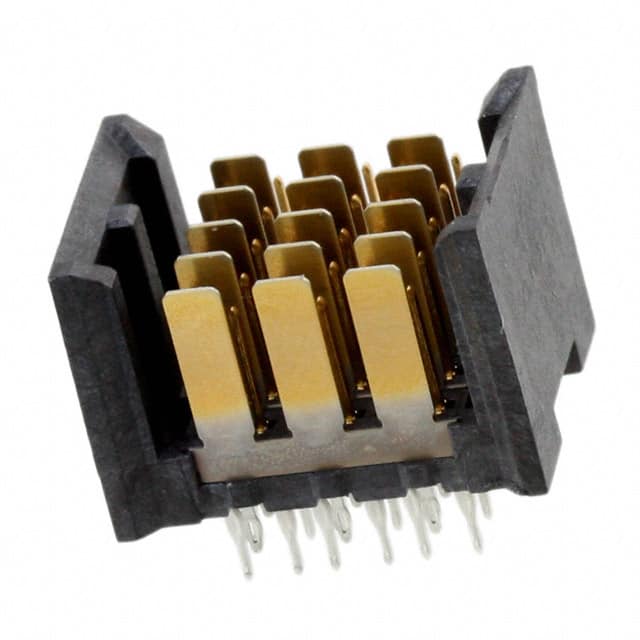

5120732-1 Header, male pins and blades, dual beam center backplane connector with 30 positions. Features 2.50mm pitch, through hole press-fit termination, and gold contact finish.
Mfr Part #:

5120732-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Header, male pins and blades, dual beam center backplane connector with 30 positions. Features 2.50mm pitch, through hole press-fit termination, and gold contact finish.
✓ Total Stock: 3,020 pcs
$ Price Range: $12.39 - $18.38

5120732-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
3,020 pcs
On Request
3020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5120732-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Mounting Type
Number of Columns
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Tape & Reel
Termination
View Similar Products (0)

5120732-1 Description

Short technical summary and product information.

The TE Connectivity 5120732-1 is a backplane connector designed as a header with male pins and blades. It features a dual beam center style and is intended for backplane usage. The connector has 30 positions arranged in 6 rows and 5 columns, with all positions loaded. The pitch is 2.50mm (0.098 inches), allowing for compact board designs. Mounting is through hole with press-fit termination, providing a secure solderless connection. The contact finish is gold with a thickness of 30.0 microinches (0.76 micrometers), ensuring reliable conductivity and corrosion resistance. This connector is suitable for high-density backplane applications in telecommunications, data centers, and industrial equipment.

5120732-1 Quick Information

Product Type: Backplane Connector
Canonical Name: TE Connectivity 5120732-1 Header, Male Pins and Blades, Dual Beam, Center, Backplane Connector, 30 Positions, 2.50mm Pitch, Through Hole, Press-Fit, Gold Contact Finish
Subcategory: Dual Beam

5120732-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5120732-1 Estimated Pricing

Qty Low High
1+ $18.38 $18.38
10+ $15.93 $15.93
25+ $15.10 $15.10
40+ $14.88 $14.88
120+ $13.20 $13.20
280+ $12.39 $12.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

5120732-1 Features

  • 30 position dual beam header connector.
  • 2.50mm pitch for compact designs.
  • Through hole press-fit termination.
  • Gold contact finish with 30µin thickness.
  • All positions loaded for full connectivity.

5120732-1 Applications

  • Used in backplane interconnect systems.
  • Suitable for high-density PCB applications.
  • Ideal for telecommunications equipment.
  • Common in data center infrastructure.

5120732-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

30 positions.

What is the pitch?

2.50mm (0.098 inches).

What is the mounting type?

Through hole.

What is the termination method?

Press-fit.

What is the contact finish?

Gold with 30.0 microinches (0.76 micrometers) thickness.

How many rows and columns does it have?

6 rows and 5 columns.

Is it RoHS compliant?

RoHS3 Compliant (unverified).
