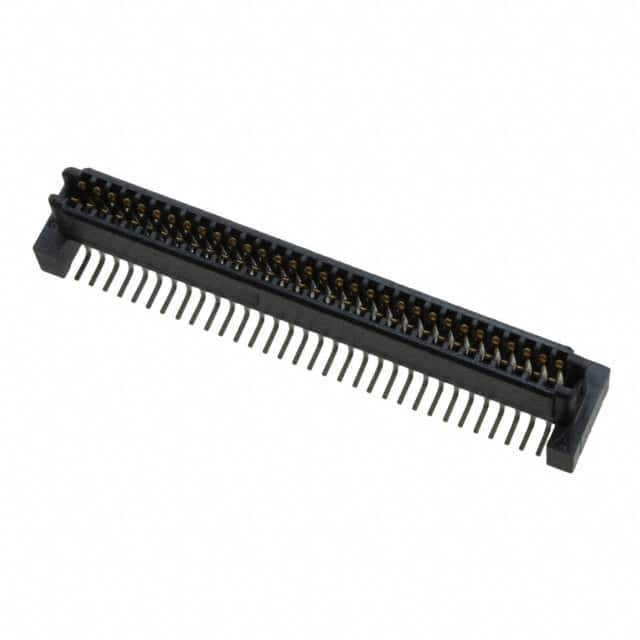

The TE Connectivity 5120603-1 is a 64-position receptacle connector designed for board-to-board mezzanine applications. It features a 1.00mm pitch and two rows of contacts, with a surface mount mounting type. The connector has a height above board of 7.37mm and supports mated stacking heights of 11mm and 12mm.
The housing is made of high temperature thermoplastic in black, and the contacts are phosphor bronze with a gold finish on the mating area (minimum 1.27µm) and matte tin on the solder area (minimum 3.81µm). The connector includes a board guide feature for alignment during assembly.
Packaged in tape and reel per EIA-481, this connector is suitable for automated pick-and-place assembly. It is part of the TE Connectivity 5120603 series and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.79 | $7.79 |
| 10+ | $6.62 | $6.62 |
| 100+ | $5.63 | $5.63 |
| 450+ | $5.06 | $5.06 |
| 900+ | $4.82 | $4.82 |
| 1,350+ | $4.68 | $4.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm (0.039 inches).
The connector has 64 positions arranged in 2 rows.
The mounting type is surface mount (SMD).
The mating area has a minimum of 1.27µm gold over nickel, and the solder area has a minimum of 3.81µm matte tin over nickel.
The height above board is 7.37mm (0.290 inches).
The connector is packaged in tape and reel per EIA-481.
