| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

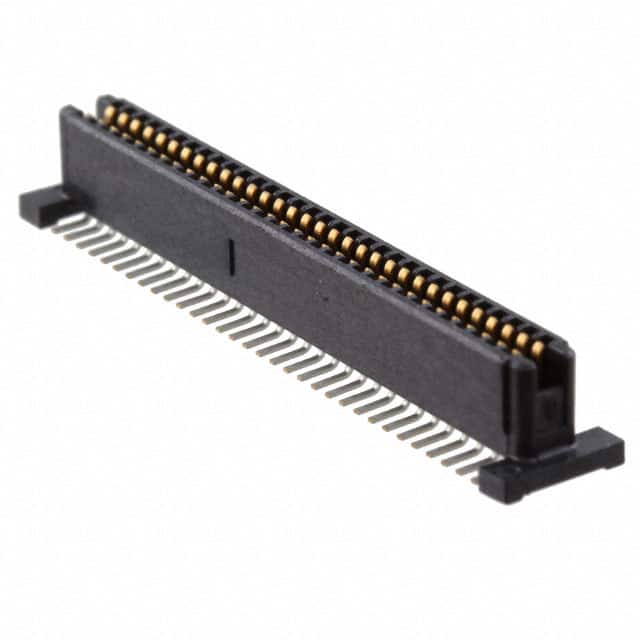

The TE Connectivity 5120528-1 is a 64-position, 2-row, 1.00mm pitch surface mount receptacle designed for mezzanine board-to-board connections. The connector features outer shroud contacts with a gold contact finish of 50µin (1.27µm). It supports mated stacking heights of 8mm, 9mm, or 10mm, with a height above board of 0.211 inches (5.35mm).
This surface mount connector is suitable for applications requiring reliable high-density interconnects. The 64 positions in a 2-row configuration provide flexibility for signal and power routing. The gold contact finish ensures good conductivity and corrosion resistance. Compliance ratings include RoHS3, MSL 1, and REACH unaffected.
The connector is available in tape and reel packaging (DigiKey A111226TR-ND) or cut tape (A111226CT-ND). It is categorized under arrays, edge type, mezzanine connectors, making it ideal for parallel board stacking in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.94 | $6.94 |
| 10+ | $5.90 | $5.90 |
| 25+ | $5.53 | $5.53 |
| 50+ | $5.27 | $5.27 |
| 100+ | $5.01 | $5.01 |
| 250+ | $4.71 | $4.71 |
| 650+ | $4.39 | $4.39 |
| 1,300+ | $4.18 | $4.18 |
| 1,950+ | $4.07 | $4.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
64 positions in 2 rows.
1.00mm (0.039 inches).
Surface mount (SMD).
Gold with 50µin thickness.
8mm, 9mm, or 10mm.
2 rows.
