Mfr Part #:

5120.1306.0

Q: What is the leakage current?

Standard: <0.5mA, Medical: <5µA at 250V/60Hz.

Q: Is this part filtered?

Yes, it includes an EMI/RFI filter for commercial and medical applications.

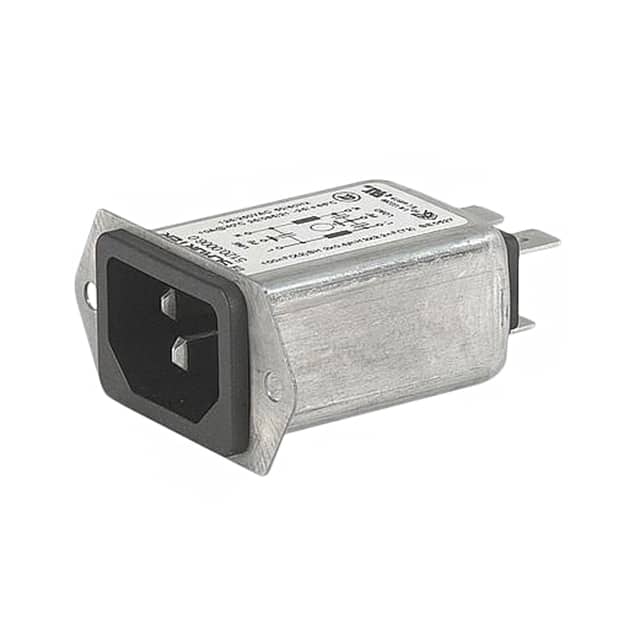

Schurter 5120.1306.0 is an IEC 320-C14 power entry module with EMI/RFI filter. It features panel mount, quick connect termination, and is rated for 10A (IEC) / 15A (UL) at 250VAC.

✓ Total Stock: 5 pcs

$ Price Range: $7.21 - $11.74

5120.1306.0 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5120.1306.0 Description

Short technical summary and product information.

The Schurter 5120.1306.0 is a compact IEC 320-C14 appliance inlet with an integrated EMC filter. It is designed for panel mounting with a flange and offers quick connect (0.250") termination. The module is rated for 10A at 250VAC (IEC) and 15A at 250VAC (UL/CSA). It features a shielded metal case for optimal EMI/RFI suppression, making it suitable for both commercial and medical equipment. The filter meets standard and medical leakage current requirements: <0.5mA standard and <5µA medical at 250V/60Hz. Dielectric strength is >1.7kVDC between L-N and >2.7kVDC between L/N-PE. The operating temperature range is -25°C to 85°C, with IP40 protection on the front side. The part is approved by CCC, cULus, and ENEC, with flammability rating UL94 V-0. It accommodates protection class I or II and has a typical MTBF of 3,000,000 hours per MIL-HDBK-217F.

5120.1306.0 Quick Information

Product Type: Power Entry Module

Series: 5120

Canonical Name: IEC 320-C14 Receptacle, Male Blades, Panel Mount, Flange, Shielded, Filtered (EMI, RFI) - Commercial, Medical

Subcategory: Filtered (EMI/RFI)

5120.1306.0 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5120.1306.0 Estimated Pricing

Qty	Low	High
1+	$11.74	$11.74
10+	$9.98	$9.98
30+	$9.23	$9.23
50+	$8.91	$8.91
100+	$8.48	$8.48
250+	$7.95	$7.95
500+	$7.57	$7.57
1,000+	$7.21	$7.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

5120.1306.0 Features

IEC 320-C14 appliance inlet with filter.
Rated for 10A IEC and 15A UL/CSA.
Panel mount with flange and quick connect.
Suitable for commercial and medical use.
Shielded metal case for EMI protection.

5120.1306.0 Applications

Used in power supplies and medical devices.
Ideal for computer and networking equipment.
Suitable for industrial control systems.
Common in test and measurement instruments.

5120.1306.0 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

3 positions.

What is the current rating?

10A per IEC and 15A per UL/CSA at 250VAC, 40°C.

What is the voltage rating?

250VAC.

What mounting type does this part use?

Panel mount with flange.

What is the leakage current?

Standard: <0.5mA, Medical: <5µA at 250V/60Hz.

What is the operating temperature range?

-25°C to 85°C.

Is this part filtered?
