| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Features | |
| Filter Type | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Screw Torque | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Protection Class | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| current_rating (Nominal @ IEC, Ta 40 °C) | |
| current_rating (Nominal @ UL/CSA, Ta 40 °C) | |
| current_rating (Unspecified condition) | |
| leakage_current (Maximum @ Medical, 250 V / 60 Hz) | |
| leakage_current (Maximum @ Standard, 250 V / 60 Hz) | |
| panel_thickness (Maximum @ Screw with plastic flange) | |
| panel_thickness (Nominal @ Snap-in) |

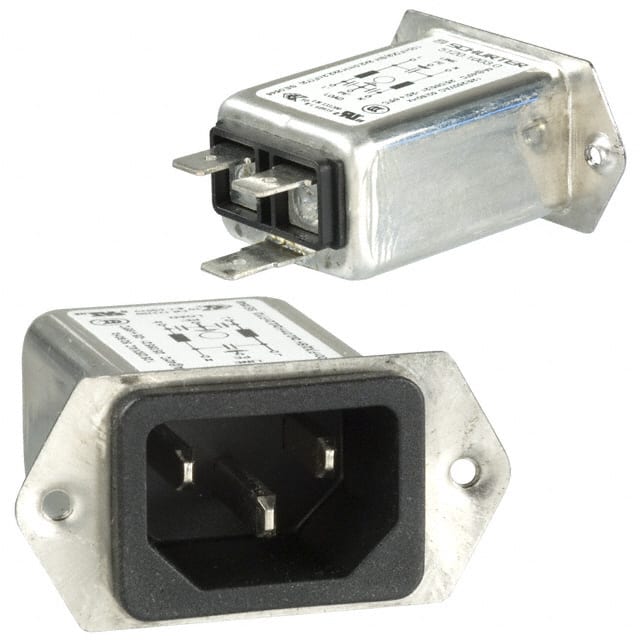

The Schurter 5120.1003.0 is a power entry module with integrated EMI/RFI line filter. It features an IEC 320-C14 receptacle with male blades, panel mount with flange, and quick connect 0.250" (6.3mm) terminals. The shielded design provides effective noise suppression for commercial applications.
The module is rated for 4A at 250VAC (IEC 1-10A, UL 1-15A) and offers low leakage current: less than 0.5mA in standard versions and less than 5µA in medical versions. Dielectric strength is greater than 1.7kVDC between L-N and greater than 2.7kVDC between L/N-PE. Operating temperature range is -25°C to 85°C with IP40 protection on the front side.
Mounting options include snap-in for panel thickness 0.8-2mm or screw mounting with plastic flange up to 8mm panel thickness. The module is suitable for protection class I or II installations. Material flammability rating is UL94 V-0. Approvals include CCC, cULus, and ENEC. The design meets medical equipment standards IEC/UL 60601-1 (1 MOOP, 1 MOPP) and is compatible with IEC/UL 62368-1 applications when using bleed resistor variants.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.34 | $12.34 |
| 10+ | $10.48 | $10.48 |
| 30+ | $9.70 | $9.70 |
| 50+ | $9.36 | $9.36 |
| 100+ | $8.91 | $8.91 |
| 250+ | $8.35 | $8.35 |
| 500+ | $7.95 | $7.95 |
| 1,000+ | $7.58 | $7.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
4 A (IEC 1-10 A, UL/CSA 1-15 A) at 250 VAC.
250 VAC.
Panel mount with flange (screw-on or snap-in).
No, it does not accommodate a fuse.
Standard version: <0.5 mA; Medical version: <5 µA at 250 V/60 Hz.
CCC, cULus, ENEC.
