| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Length | |
| Material | |
| Package Cooled | |
| Shape | |
| Thermal Resistance @ Natural | |
| Type | |
| Width |

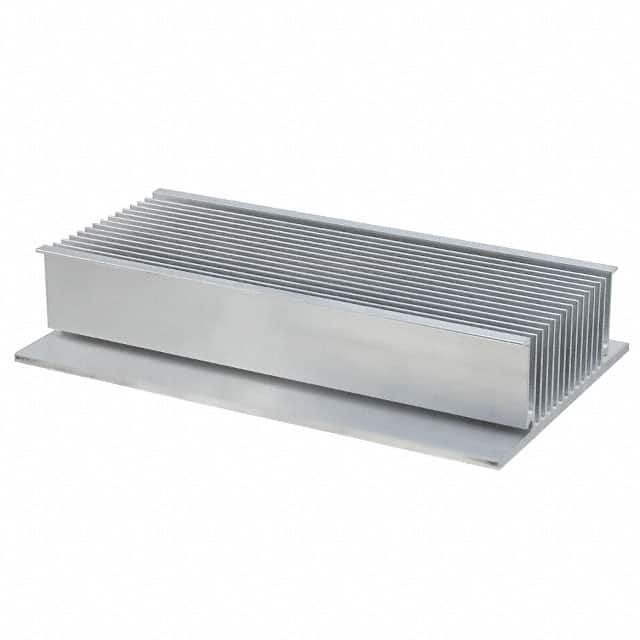

The Wakefield-Vette 512-12M is a top mount extrusion heat sink designed for cooling power modules and IGBTs. It measures 304.8mm (12.000") in length and 182.88mm (7.200") in width, with a fin height of 59.69mm (2.350"). The rectangular aluminum fins provide efficient heat dissipation, with a thermal resistance of 0.45°C/W under natural convection.
The heat sink is constructed from aluminum and uses adhesive attachment for secure mounting to the power module. This design is suitable for applications requiring reliable thermal management in industrial power supplies, motor drives, and inverters. The part is listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unverified).
For optimal performance, the heat sink should be used with proper thermal interface material and adequate airflow. Its dimensions and low profile make it suitable for systems with space constraints.
| Qty | Low | High |
|---|---|---|
| 25+ | $90.13 | $90.13 |
| 50+ | $86.86 | $86.86 |
| 100+ | $83.71 | $83.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.45°C/W at natural convection.
Length 304.8mm (12.000"), width 182.88mm (7.200"), fin height 59.69mm (2.350").
Aluminum.
Adhesive.
Power modules.
Rectangular with fins.
Yes, listed as RoHS3 compliant (unverified).
