| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Automotive Grade | |
| Capacitance (CX) | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Halogen Free | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Leakage Current (Maximum @ 250 V / 60 Hz) | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| Ratings IEC | |
| Ratings UL/CSA | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| dielectric_strength (Minimum @ Test voltage 2 sec) |

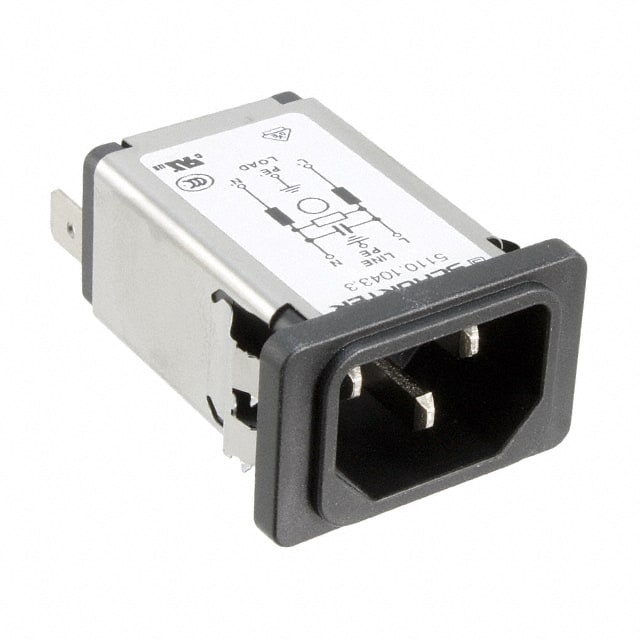

The Schurter 5110.0143.3 is an IEC 320-C14 appliance inlet with integrated EMI/RFI filter. It features a panel mount snap-in design and quick connect terminals (0.250" / 6.3mm). This power entry module is rated for 1A at 250VAC and offers both standard and medical filter versions, with leakage current less than 0.5mA (standard) or less than 5µA (medical). The filter includes a 100nF CX capacitor.
Electrical characteristics include dielectric strength of >1.7kVDC between L-N and >2.7kVDC between L/N-PE. The operating temperature range is -25°C to 85°C, with climatic category 25/085/21 per IEC 60068-1. The component is IP40 rated on the front side and is suitable for protection class I applications.
Approvals include CCC, cULus, and ENEC, with a flammability rating of UL94 V-0. The part is RoHS3 compliant and REACH unaffected (unverified). It is designed for use in commercial and medical equipment, meeting IEC/UL 60601-1 for medical devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.78 | $24.78 |
| 10+ | $21.06 | $21.06 |
| 30+ | $19.49 | $19.49 |
| 50+ | $18.80 | $18.80 |
| 100+ | $17.90 | $17.90 |
| 250+ | $16.78 | $16.78 |
| 500+ | $15.98 | $15.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions (Line, Neutral, Ground).
1 A; with IEC ratings up to 10 A and UL/CSA ratings up to 15 A at 40°C.
250 VAC.
Panel Mount, Snap-In.
Yes, it is a filtered (EMI, RFI) type suitable for commercial and medical applications.
CCC, cULus, and ENEC.
-25 °C to 85 °C.
