| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
451 pcs
|
451 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

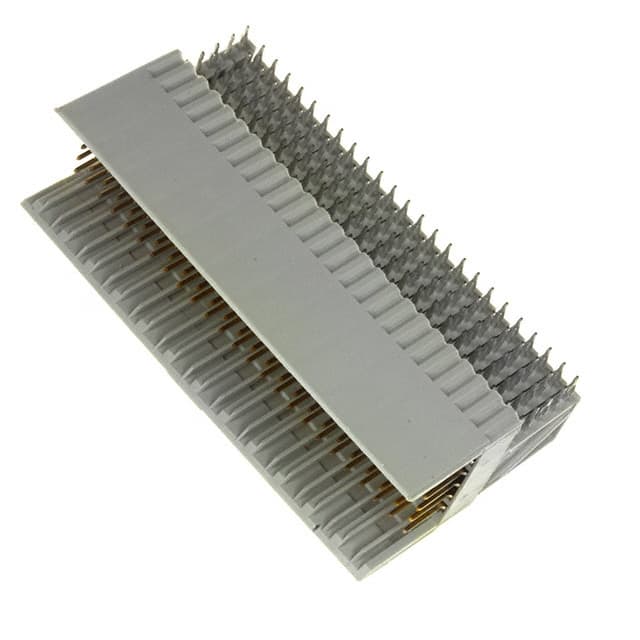

The TE Connectivity 5106014-1 is a high-density backplane connector featuring 125 male pins arranged in 5 rows with a 2.00mm pitch. This header is designed for board edge mounting with a right-angle orientation, enabling compact, space-saving layouts in rack and panel systems.
The connector uses press-fit termination, eliminating the need for soldering and reducing assembly time. Contacts are finished with 30µin (0.76µm) gold over a suitable base metal, ensuring reliable signal transmission and corrosion resistance. The connector style is identified as B 25, compliant with hard metric standards.
Ideal for use in backplane and midplane applications, this connector supports high-density interconnection in telecommunications, data communications, and industrial equipment. All 125 positions are loaded for maximum functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.22 | $53.22 |
| 11+ | $44.93 | $44.93 |
| 33+ | $41.58 | $41.58 |
| 55+ | $40.11 | $40.11 |
| 110+ | $38.20 | $38.20 |
| 253+ | $36.02 | $36.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
125 positions.
2.00mm (0.079 inches).
Board edge, through hole, right angle.
5 rows.
Press-fit.
Yes, all 125 positions are loaded.
Gold, 30µin (0.76µm).
