| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

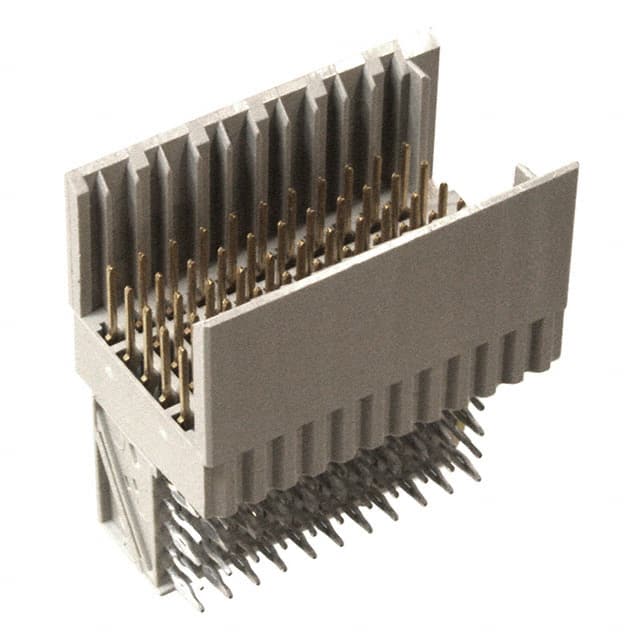

The TE Connectivity 5106012-1 is a C 11 style backplane connector featuring a header with male pins. It offers 55 positions loaded across 5 rows with a 2.00mm pitch, providing a compact yet high-density interconnection solution.
The connector uses press-fit termination for reliable, solderless board attachment and is designed for board edge, through hole, right angle mounting. Contacts are finished with 30.0µin (0.76µm) gold for corrosion resistance and reliable signal integrity.
This connector is intended for backplane applications where dense, reliable connections are required in telecommunications, data communications, and industrial computing equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.29 | $24.29 |
| 22+ | $19.52 | $19.52 |
| 44+ | $18.59 | $18.59 |
| 66+ | $18.07 | $18.07 |
| 110+ | $17.43 | $17.43 |
| 264+ | $16.39 | $16.39 |
| 506+ | $15.65 | $15.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 55 positions, all loaded, arranged in 5 rows.
The pitch is 2.00mm.
It uses board edge, through hole, right angle mounting with press-fit termination.
The contacts have a gold finish with a thickness of 30.0µin (0.76µm).
The connector style is C 11.
