| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

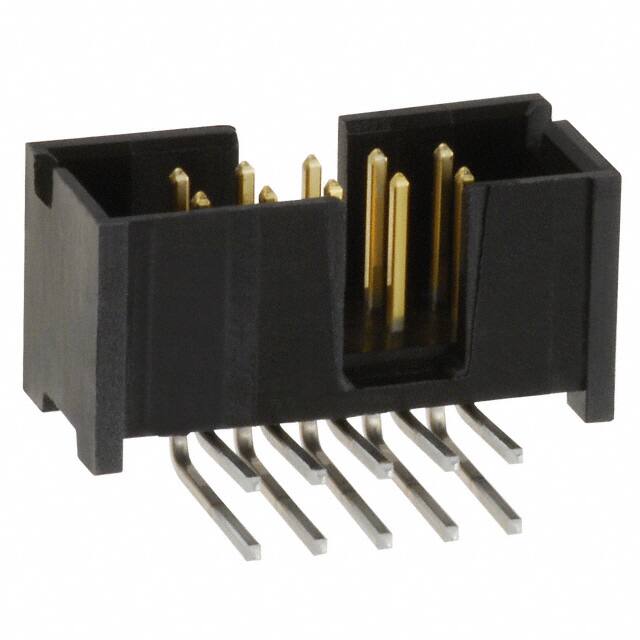

The TE Connectivity 5103311-1 is a 10-position, 2-row rectangular header with a 2.54mm pitch and 2.54mm row spacing. It features male square pins with tin-plated brass contacts, offering a current rating of 1A per contact. The header is shrouded with 4 walls for protection and uses a push-pull fastening type.
This connector is designed for board-to-cable/wire applications, with a right-angle through-hole mounting style and solder termination. The insulation is black, rated UL94 V-0, and the operating temperature range is -65°C to 105°C. The mating contact length is 6.10mm and the insulation height is 9.14mm.
Typical applications include wire-to-board connections in industrial, consumer electronics, and other systems requiring a reliable, compact header. The through-hole design ensures robust mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
| 10+ | $2.07 | $2.07 |
| 125+ | $1.73 | $1.73 |
| 500+ | $1.57 | $1.57 |
| 1,000+ | $1.49 | $1.49 |
| 5,000+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions arranged in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through hole, right angle with solder termination.
1A per contact.
-65°C to 105°C.
Tin with 0.76µm thickness.
Yes, shrouded with 4 walls.
