| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,160 pcs
|
2160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

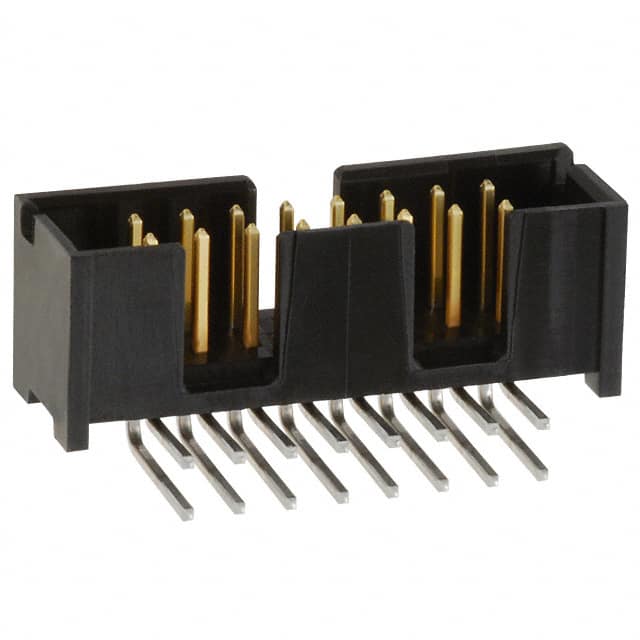

The 5103310-3 is a 16-position, 2-row rectangular connector header from TE Connectivity. It features a male pin contact arrangement with a 2.54mm pitch and a right-angle through-hole mounting style, making it suitable for board-to-cable/wire connections.
The header is fully shrouded with a 4-wall design and includes a keying slot for proper alignment and polarization. Contacts are made of brass with a 15.0µin tin finish, rated for 1A per contact. The black insulation is rated UL94 V-0 for flammability resistance. The push-pull fastening type ensures secure mating.
Operating temperature ranges from -65°C to 105°C, suitable for industrial applications. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.08 | $3.08 |
| 90+ | $2.24 | $2.24 |
| 180+ | $2.13 | $2.13 |
| 540+ | $1.97 | $1.97 |
| 1,080+ | $1.88 | $1.88 |
| 5,040+ | $1.68 | $1.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions in 2 rows.
2.54mm (0.100")
1A per contact.
Through Hole, Right Angle.
-65°C to 105°C.
Yes, it is shrouded with a 4-wall design and includes a keying slot.
Brass contacts with 15.0µin (0.38µm) tin finish.
