| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 24295 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

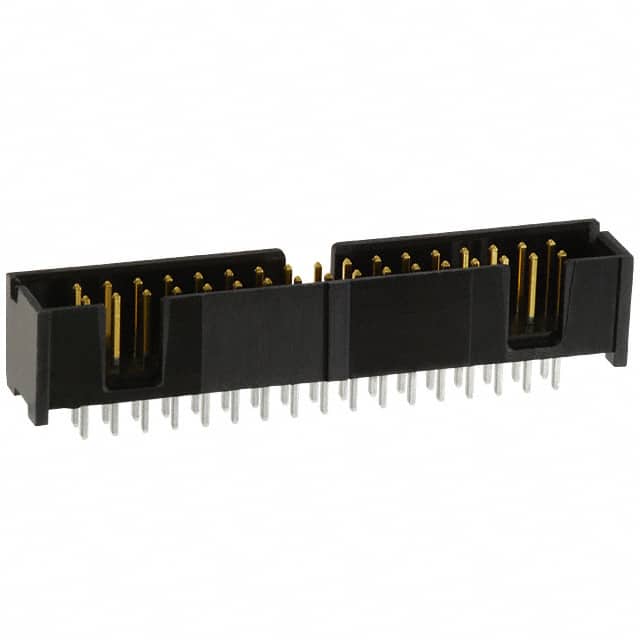

The TE Connectivity 5103309-7 is a 34-position header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2 rows with all positions loaded. The connector is shrouded with a 4-wall design, providing protection for the male pins during mating. The insulation height is 9.86mm and the contact length is 6.10mm, with square pins finished in 30µin tin over brass material. The operating temperature range is -65°C to 105°C, and the current rating is 1A per contact. The housing is black plastic with UL94 V-0 flammability rating. The connector is through-hole mounted with solder termination. It includes a keying slot for polarization. This connector is RoHS3 compliant and REACH unaffected, with MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.40 | $4.40 |
| 50+ | $3.34 | $3.34 |
| 100+ | $3.18 | $3.18 |
| 500+ | $2.84 | $2.84 |
| 1,000+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 34 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The current rating is 1A per contact.
The connector is through-hole mounted with solder termination.
Yes, it has a shrouded 4-wall design.
The contacts are finished with tin, 30µin (0.76µm) thickness.
The operating temperature range is -65°C to 105°C.
