| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,025 pcs
|
5025 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

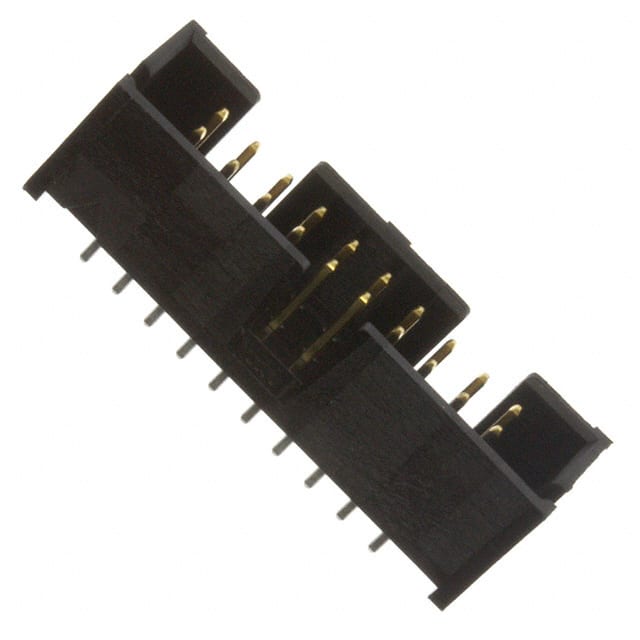

The TE Connectivity 5103309-5 is a 20-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, making it compatible with standard rectangular connector systems.
This header has male square pins with tin-plated brass contacts, offering a current rating of 1A per contact. The connector is fully shrouded with a 4-wall design and includes a keying slot for polarization. It uses push-pull fastening and is mounted via through hole with solder termination.
The insulation is black with a height of 9.86mm, and the contact length is 6.10mm. It operates over a temperature range of -65°C to 105°C and has a UL94 V-0 flammability rating. The part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.25 | $3.25 |
| 75+ | $2.40 | $2.40 |
| 150+ | $2.28 | $2.28 |
| 525+ | $2.09 | $2.09 |
| 1,050+ | $1.99 | $1.99 |
| 5,025+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
1A per contact.
Through Hole.
-65°C to 105°C.
Yes, it is a 4-wall shrouded header.
2 rows.
