| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,510 pcs
|
3510 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

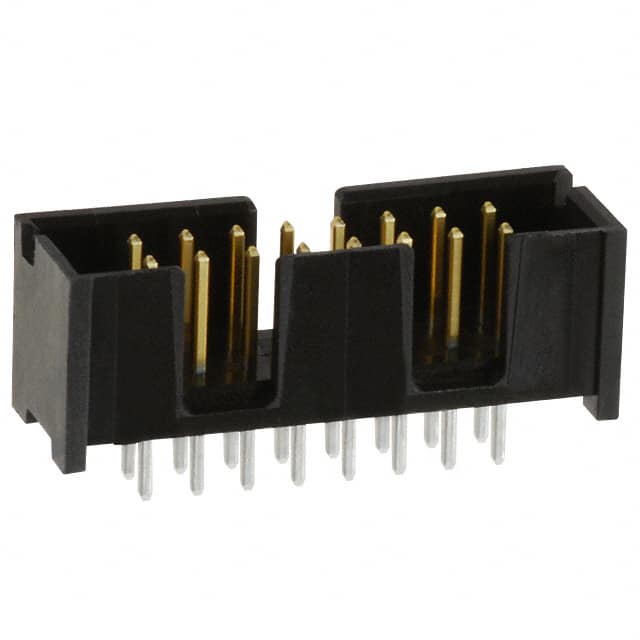

The TE Connectivity 5103309-3 is a 16-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, with all positions loaded. The connector uses through-hole mounting with solder termination and has a push-pull fastening type.
The header is fully shrouded with a 4-wall design and includes a keying slot for alignment. Contacts are made of brass with a tin finish (30.0µin thickness) and have a square shape. The insulation is black with a height of 9.86mm, and the contact length is 6.10mm.
Electrical rating is 1A per contact, and the operating temperature range is -65°C to 105°C. The housing material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.95 | $2.95 |
| 90+ | $2.15 | $2.15 |
| 180+ | $2.05 | $2.05 |
| 540+ | $1.89 | $1.89 |
| 1,080+ | $1.80 | $1.80 |
| 5,040+ | $1.62 | $1.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5103309-3 has 16 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 1A per contact.
It uses through-hole mounting with solder termination.
Yes, it is a shrouded header with a 4-wall design and includes a keying slot.
The operating temperature range is -65°C to 105°C.
Contacts are made of brass with a tin finish of 30.0µin (0.76µm) thickness.
