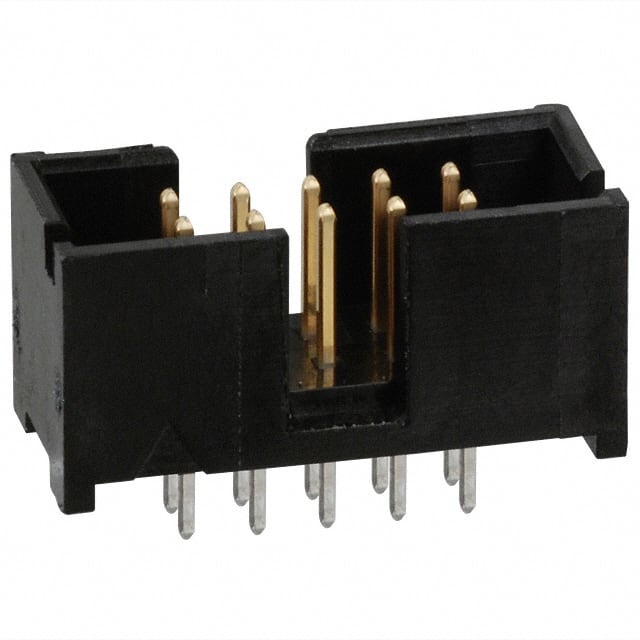

The TE Connectivity 5103309-1 is a rectangular connector header designed for board-to-cable/wire applications. It features 10 male pin contacts arranged in 2 rows with a 2.54mm pitch and row spacing. The header is fully shrouded with a 4-wall design, providing protection and alignment for mating connectors. The housing is black with a UL94 V-0 flammability rating, ensuring safety in electronic assemblies.
Contacts are made of brass with a tin finish (30.0µin thickness) and are square in shape, with a contact length of 6.10mm. The insulation height is 9.86mm. The connector uses a push-pull fastening type and includes a keying slot for proper orientation.
With a current rating of 1A per contact and an operating temperature range of -65°C to 105°C, this header is suitable for general-purpose interconnect applications. The through-hole mounting and solder termination allow for reliable mechanical attachment to PCBs.
This part is RoHS3 compliant and has an MSL of 1 (unlimited), making it suitable for lead-free soldering processes. The packaging is standard for through-hole headers.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
| 10+ | $1.53 | $1.53 |
| 125+ | $1.28 | $1.28 |
| 500+ | $1.16 | $1.16 |
| 1,000+ | $1.10 | $1.10 |
| 5,000+ | $0.99 | $0.99 |
| 10,000+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100 inches).
1A per contact.
Through hole.
-65°C to 105°C.
Push-pull.
Tin with 30.0µin thickness.
