| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,197 pcs
|
5197 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,067 pcs
|
1067 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 1739 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

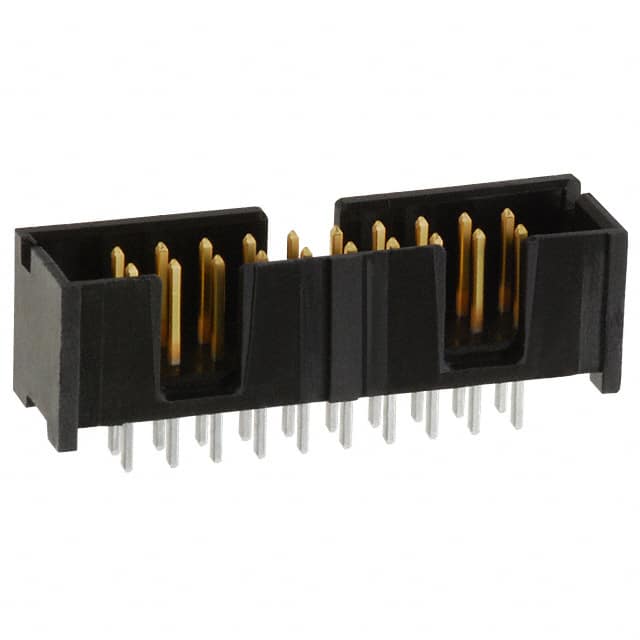

The TE Connectivity 5103308-5 is a 20-position, 2-row, 2.54mm pitch shrouded header designed for board-to-cable/wire interconnections. It features male pin contacts with tin-plated brass square pins, offering reliable solder termination. The header is through-hole mounted and has a push-pull fastening type for easy mating and unmating. The 4-wall shrouding provides polarization and protects the contacts. A keying slot ensures correct orientation. The black insulator is made of UL94 V-0 rated material, ensuring flame retardancy. The operating temperature range is -65°C to 105°C, and the current rating is 1A per contact. Contact finish thickness is 15.0µin (0.38µm). This header is suitable for general-purpose signal and low-power applications in industrial control, automation, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.46 | $2.46 |
| 75+ | $1.81 | $1.81 |
| 150+ | $1.72 | $1.72 |
| 525+ | $1.58 | $1.58 |
| 1,050+ | $1.50 | $1.50 |
| 5,025+ | $1.47 | $1.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded.
2.54mm (0.100").
1A per contact.
Through hole.
-65°C to 105°C.
Push-pull.
Yes, it is a 4-wall shrouded header.
