| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,604 pcs
|
2604 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,530 pcs
|
1530 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
340 pcs
|
340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

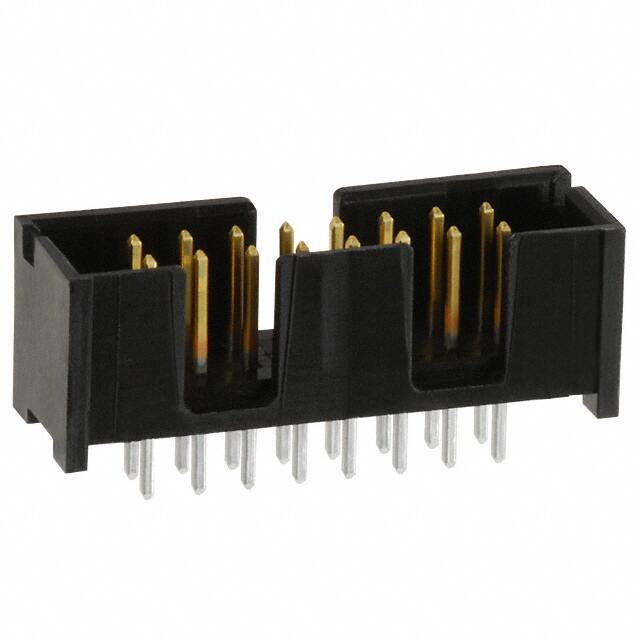

The TE Connectivity 5103308-3 is a 16-position, 2-row through-hole header designed for board-to-cable/wire applications. It features a 2.54mm pitch and row spacing, with male square pin contacts made of brass and plated with tin (15.0µin thickness). The header is shrouded with a 4-wall design and includes a keying slot for correct orientation. The insulation is black UL94 V-0 rated material with a height of 9.86mm. Each contact is rated for 1A maximum current, and the operating temperature range is -65°C to 105°C. The contacts have a length of 6.10mm for reliable through-hole soldering. This header is suitable for various interconnect applications requiring secure and polarized connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.36 | $2.36 |
| 90+ | $1.72 | $1.72 |
| 180+ | $1.64 | $1.64 |
| 540+ | $1.51 | $1.51 |
| 1,080+ | $1.44 | $1.44 |
| 5,040+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5103308-3 has 16 positions (2 rows of 8).
The pitch is 2.54mm (0.100") with the same row spacing.
Through hole mounting with solder termination.
1A per contact (maximum).
-65°C to 105°C.
Brass contacts with tin finish of 15.0µin (0.38µm).
Yes, it has a shrouded 4-wall design with a keying slot.
