| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
224 pcs
|
224 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

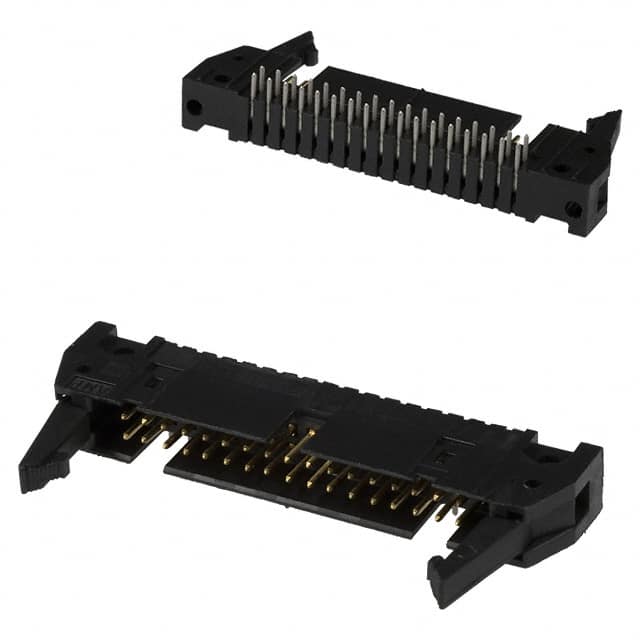

This part from TE Connectivity is a 34-position, 2-row pin header designed for board-to-cable/wire applications. It features a 2.54mm pitch and right-angle orientation, making it suitable for compact PCB layouts.
The header is fully shrouded with four walls and includes latch lock/eject hooks for secure mating. Contacts are made of brass with a tin plating (30µin) and square shape. The black insulator is rated UL94 V-0 for flammability. Key mechanical features include a keying slot and mounting flange.
Electrically, each contact is rated for 1A at 250VAC. The operating temperature range spans -65°C to 105°C, accommodating harsh environments. Through-hole mounting with solder termination ensures reliable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.17 | $14.17 |
| 32+ | $11.09 | $11.09 |
| 128+ | $10.06 | $10.06 |
| 512+ | $9.12 | $9.12 |
| 1,024+ | $8.69 | $8.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions.
2.54mm (0.100 inches).
1A per contact.
250VAC.
Through hole, right angle with solder termination.
-65°C to 105°C.
UL94 V-0.
