| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
910 pcs
|
910 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

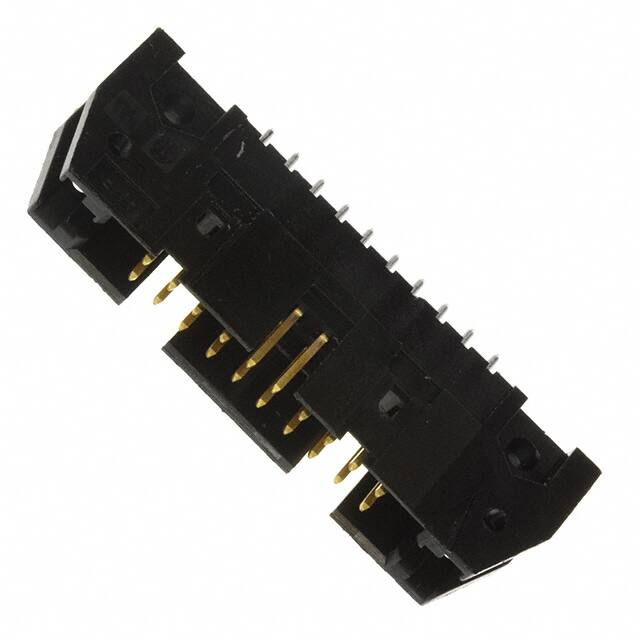

The TE Connectivity 5102154-4 is a 20-position, 2-row male pin header designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, ensuring compatibility with standard 0.100-inch grid patterns. The header is fully shrouded with a 4-wall design, providing protection for the pins and facilitating proper mating with matching connectors. The through hole mounting style allows for secure soldering to the PCB. The housing is made of black UL94 V-0 rated material, and the square pins have a tin contact finish with a thickness of 0.76µm. The overall contact length is 16.23mm, with an insulation height of 13.94mm. The header includes keying slots and mounting flanges for alignment and secure attachment. Electrical specifications include a current rating of 1A per contact and an operating temperature range of -65°C to 105°C. The push-pull fastening type ensures easy mating and unmating. This header is suitable for a variety of interconnection applications requiring reliable signal or power transmission.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.99 | $3.99 |
| 70+ | $2.96 | $2.96 |
| 140+ | $2.82 | $2.82 |
| 560+ | $2.55 | $2.55 |
| 1,050+ | $2.44 | $2.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100 inches).
1A per contact.
Through hole with solder termination.
-65°C to 105°C.
Yes, it is a 4-wall shrouded header.
Tin with 0.76µm thickness.
