| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,070 pcs
|
2070 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

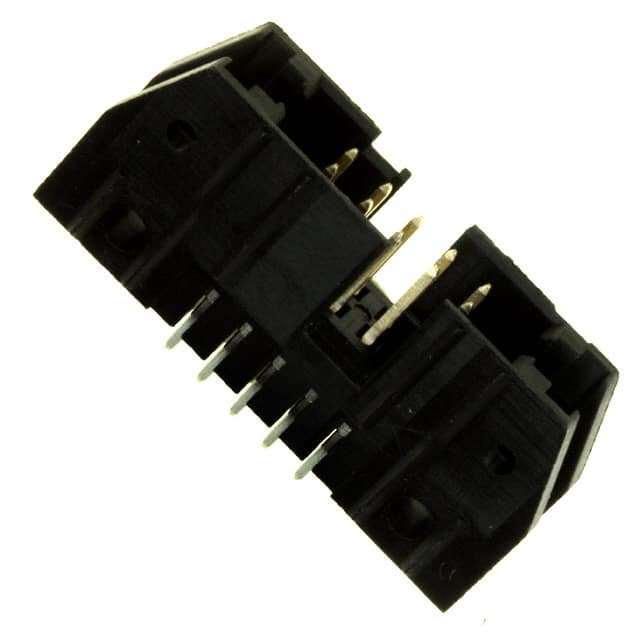

The TE Connectivity 5102154-1 is a 10 position, 2 row shrouded header with a 2.54mm pitch and row spacing. It features a 4-wall shrouded design with a keying slot and mounting flange for secure board-to-cable/wire connections. The header uses male square pin contacts with a tin finish (30.0µin) and is rated for 1A per contact. The insulation is black UL94 V-0 rated material with a height of 13.94mm. The overall contact length is 16.23mm with a mating contact length of 6.10mm. This through-hole component is solder terminated and operates over a temperature range of -65°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.15 | $2.15 |
| 90+ | $1.56 | $1.56 |
| 180+ | $1.49 | $1.49 |
| 540+ | $1.38 | $1.38 |
| 1,080+ | $1.31 | $1.31 |
| 5,040+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 10 positions in 2 rows.
The current rating is 1A per contact.
Through hole with solder termination.
-65°C to 105°C.
Tin with a thickness of 30.0µin (0.76µm).
