| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 1236 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

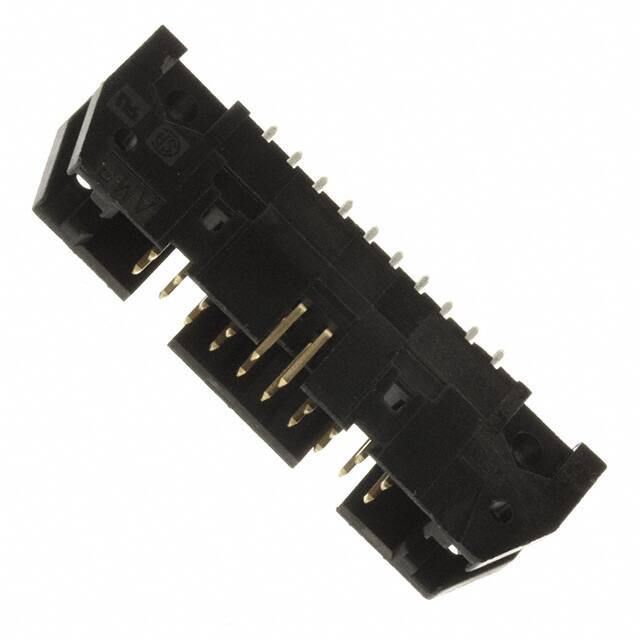

The TE Connectivity 5102153-4 is a 20-position, 2-row shrouded header designed for board-to-cable/wire applications. It features male square pins with a tin finish (15.0µin thickness) and a 2.54mm pitch. The header has a shrouded 4-wall design for polarization and protection, with a push-pull fastening type. The black insulator is made of UL94 V-0 rated material, ensuring flammability compliance. The through hole mounting with solder termination provides a reliable mechanical and electrical connection. Each contact is rated for 1A, and the operating temperature range is -55°C to 105°C. The overall contact length is 16.23mm, with an insulation height of 13.94mm. A mounting flange is included for secure attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.53 | $3.53 |
| 70+ | $2.61 | $2.61 |
| 140+ | $2.49 | $2.49 |
| 560+ | $2.26 | $2.26 |
| 1,050+ | $2.16 | $2.16 |
| 5,040+ | $1.93 | $1.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100").
1A per contact.
Through hole with solder termination.
-55°C to 105°C.
Tin with 15.0µin (0.38µm) thickness.
Yes, shrouded with 4 walls.
