| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

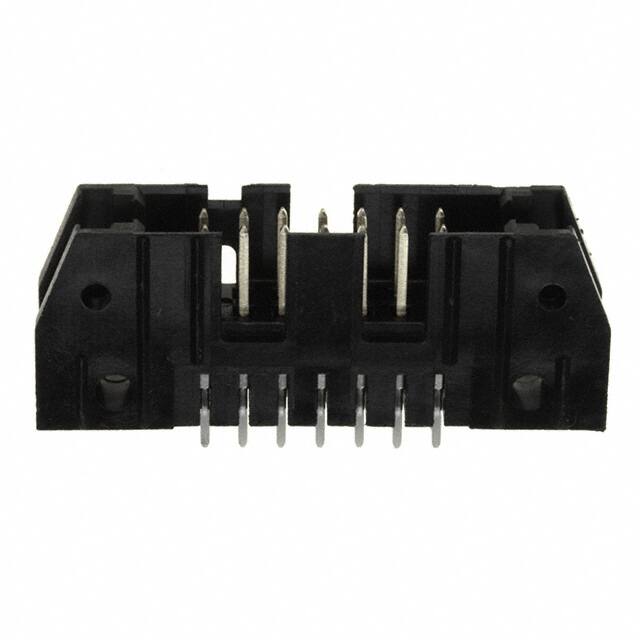

The TE Connectivity 5102153-2 is a 14-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and through-hole solder termination.
The header has a 4-wall shroud for pin protection and includes a mounting flange. The square male pins are tin-plated with a thickness of 0.38 µm (15.0 µin). The insulation height is 13.94mm.
This connector is rated for 1A per contact and operates over a temperature range of -55°C to 105°C. The housing is made of UL94 V-0 rated material and is black in color. The push-pull fastening type allows easy mating and unmating.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
| 80+ | $1.79 | $1.79 |
| 160+ | $1.70 | $1.70 |
| 560+ | $1.56 | $1.56 |
| 1,040+ | $1.49 | $1.49 |
| 5,040+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 14 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inch).
It is rated at 1A per contact.
It is a Through Hole mounting type with solder termination.
Yes, it is a shrouded header with 4-wall protection and includes a mounting flange.
