| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

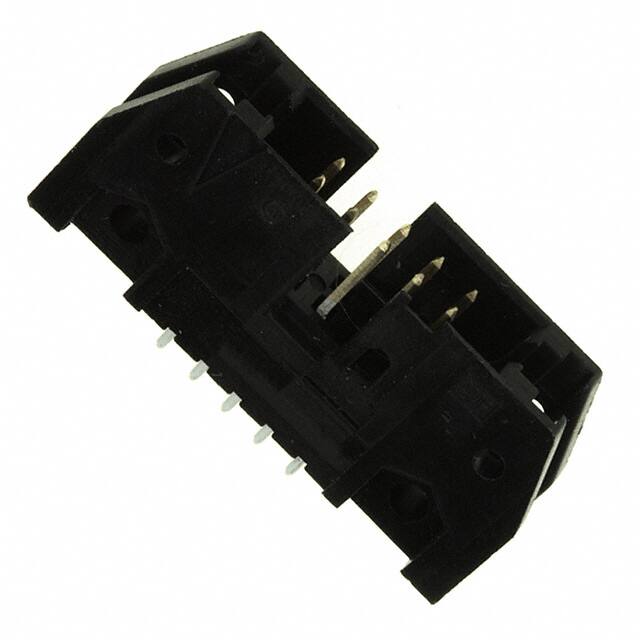

The TE Connectivity 5102153-1 is a 10-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and row spacing, making it compatible with standard ribbon cable connectors. The header uses through-hole solder termination and has a push-pull fastening mechanism with a mounting flange for secure attachment.
The square male pins are tin-plated with a thickness of 15.0 microinches, providing reliable conductivity and solderability. The black UL94 V-0 rated insulation housing offers good flammability resistance. Each contact is rated for 1A, and the operating temperature range is -55°C to 105°C.
This component is suitable for general-purpose interconnection in industrial, consumer, and telecommunications equipment where a robust, polarized connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.85 | $1.85 |
| 90+ | $1.34 | $1.34 |
| 180+ | $1.28 | $1.28 |
| 540+ | $1.18 | $1.18 |
| 1,080+ | $1.13 | $1.13 |
| 5,040+ | $1.01 | $1.01 |
| 10,080+ | $0.96 | $0.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5102153-1 has 10 positions in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 1A per contact.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 105°C.
Yes, it is a shrouded header with 4-wall shrouding and a push-pull fastening type.
