| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
113 pcs
|
113 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Termination | |
| Termination Style |

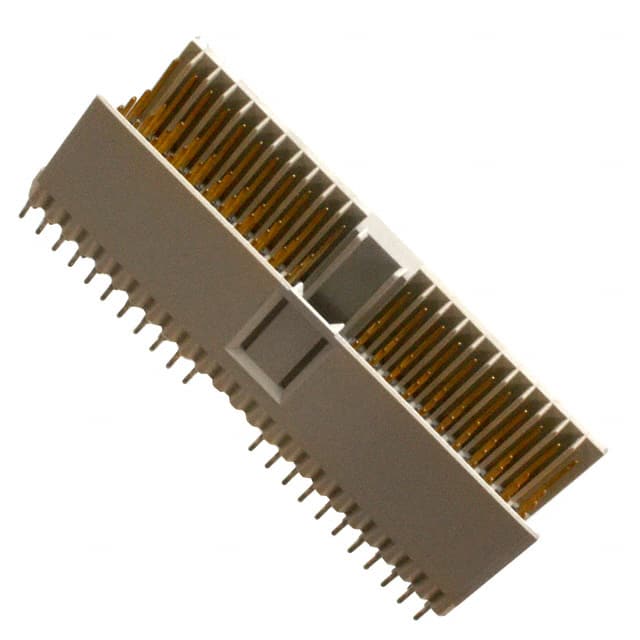

This TE Connectivity 5100668-1 is a backplane header connector with male pins, designed for hard metric standard applications. It offers 154 positions total, with 110 signal contacts and 44 ground contacts arranged in a 5+2 row configuration.
The connector features a 2.00mm pitch and a through hole mounting style with press-fit termination, ensuring reliable mechanical and electrical connection. The contacts are gold-plated with a thickness of 30.0µin (0.76µm) for corrosion resistance.
All positions are loaded, and the connector style is designated as A 22. This type of connector is commonly used in backplane and midplane designs for high-density signal routing in telecommunications, data communications, and industrial computing systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.31 | $10.31 |
| 10+ | $8.76 | $8.76 |
| 30+ | $8.11 | $8.11 |
| 50+ | $7.82 | $7.82 |
| 100+ | $7.45 | $7.45 |
| 250+ | $6.98 | $6.98 |
| 500+ | $6.65 | $6.65 |
| 1,000+ | $6.33 | $6.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 154 positions total, comprising 110 signal contacts and 44 ground contacts.
The pitch is 2.00mm.
The connector is through hole mounted with press-fit termination.
Gold finish with 30.0µin (0.76µm) thickness.
It is a backplane header connector with male pins, style A 22, under the Hard Metric, Standard category.
