| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| (Select First, Then Apply Filters) Compatible Series | |
| Color | |
| Design | |
| Failure Rate | |
| Function | |
| Lens Material | |
| Shape | |
| Terminal Type |

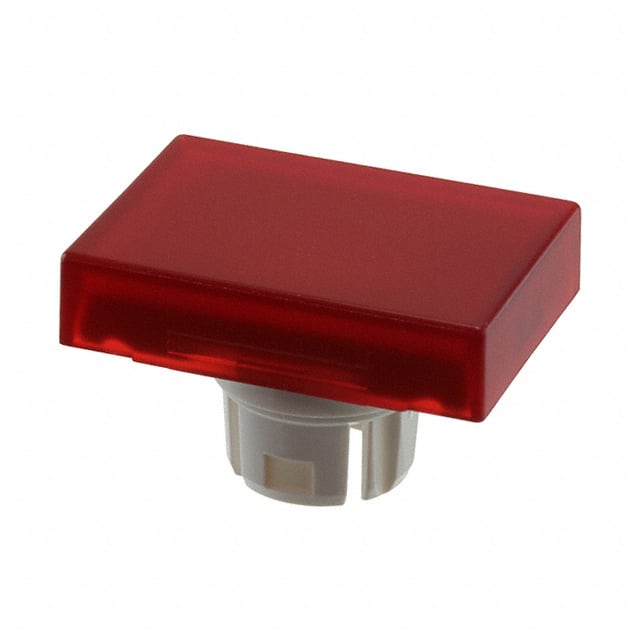

The EAO 51-901.2 is a component lens designed for the Series 51 configurable switch system. This lens features a red, rectangular shape, contributing to clear visual indication in various applications.
Key technical specifications include IP65 front protection, ensuring resistance to dust and water ingress. The Series 51 system supports multiple mounting cut-out sizes, including Ø 16.2 mm, Ø 22.3 mm, and rectangular options like 21.2 mm x 21.2 mm and 21.2 mm x 27.2 mm. Terminal options are varied, encompassing soldering terminals, plug-in terminals, and PCB-compatible bases.
This component is suitable for a wide range of applications, including food and beverages, special vehicles, building services and automation, public transportation, and medical engineering. The lens material can be either Aluminium or Plastic, and various marking methods such as engraving, laser marking, and pad printing are supported.
The EAO 51-901.2 is built for reliability and offers a timeless, modern design. Its compact construction and low back panel depth make it a versatile choice for panel-mounted controls.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EAO 51-901.2 lens has an IP65 front protection rating.
Mounting cut-out sizes include Ø 16.2 mm, Ø 22.3 mm, 21.2 mm x 21.2 mm, and 21.2 mm x 27.2 mm.
Compatible terminal types include soldering terminal, plug-in terminal, soldering/plug-in terminal, and PCB (with PCB plug-in base).
The voltage ratings are 42 VAC (100 mA) and up to 250 VAC (5 A).
Available functions include Pushbutton, Illuminated pushbutton, Mushroom-head pushbutton, Selector switch, Keylock switch, Indicator, and Stop switch.
Typical application areas include food and beverages, special vehicles, building services and automation, public transportation, and medical engineering.
