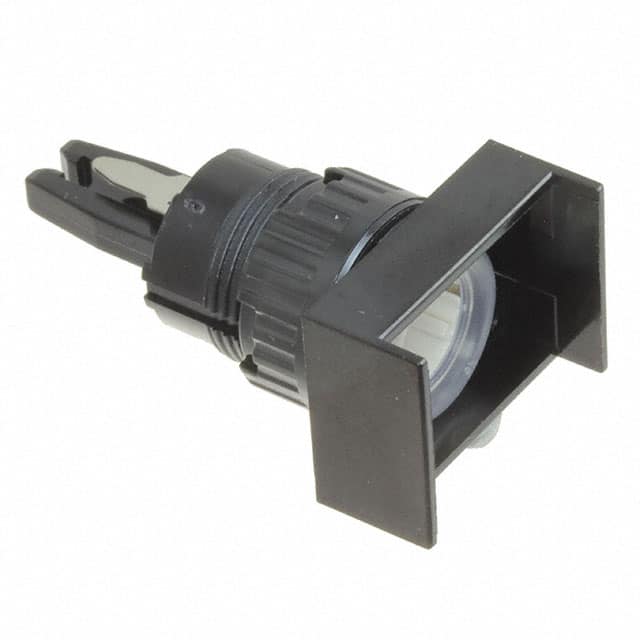

The EAO 51-265.0 is a pushbutton actuator designed for robust applications, featuring a rectangular actuator type and a maintained function. It belongs to the versatile Series 51, known for its compact construction and reliable performance.
This component offers IP65 front protection, making it suitable for environments where dust and water ingress are concerns. It is designed to be used with contact blocks, providing flexibility in configuration. The Series 51 is applicable in various fields, including food and beverages, special vehicles, building services and automation, public transportation, and medical engineering.
Available mounting options include flush and raised designs, with various cut-out dimensions to accommodate different panel preparations. Terminal types include soldering, plug-in, and PCB options, offering flexibility in wiring and assembly. The lens material can be either aluminum or plastic, and multiple marking methods are supported for customization.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EAO 51-265.0 is a rectangular pushbutton actuator.
The EAO 51-265.0 pushbutton has a maintained function.
No, the EAO 51-265.0 is a non-illuminated pushbutton actuator.
The EAO 51-265.0 has an IP65 rating for front protection.
The EAO 51-265.0 has ratings of 42 VAC (100 mA) and up to 250 VAC (5 A).
Mounting cut-out options include Ø 16.2 mm, Ø 22.3 mm, 21.2 mm x 21.2 mm, and 21.2 mm x 27.2 mm.
Available terminal types include soldering terminal, plug-in terminal, soldering/plug-in terminal, and PCB (with PCB plug-in base).
