| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diameter | |
| Dissipation Factor | |
| Failure Rate | |
| Height | |
| Length | |
| Termination Style | |
| Tolerance | |
| Voltage |

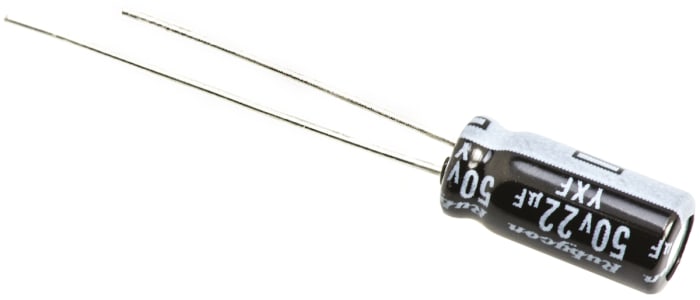

The Rubycon 50YXF22M5X11 is a miniature, high-temperature radial electrolytic capacitor from the YXF series, suitable for applications where board space is limited. It offers a capacitance of 22µF and a maximum operating voltage of 50V DC.
Key electrical specifications include a ripple current of 150mA, a leakage current of 3µA, and a tolerance of ±20%. The capacitor operates within a temperature range of -40°C to 105°C, with a rated lifetime of 5000 hours.
Mechanically, the component features a radial can construction with through-hole mounting. Its dimensions are 11mm in height and length, with a diameter of 5mm and a lead pitch of 2mm. The packaging is bulk.
This capacitor is RoHS compliant, with an MSL of 1 and REACH unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22µF.
50V DC.
-40°C to 105°C.
Radial lead, through hole.
±20%.
5000 hours.
150mA.
