| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,199 pcs
|
8199 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,199 pcs
|
4199 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dimensions | |
| ESR (Equivalent Series Resistance) | |
| Failure Rate | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tolerance | |
| Voltage |

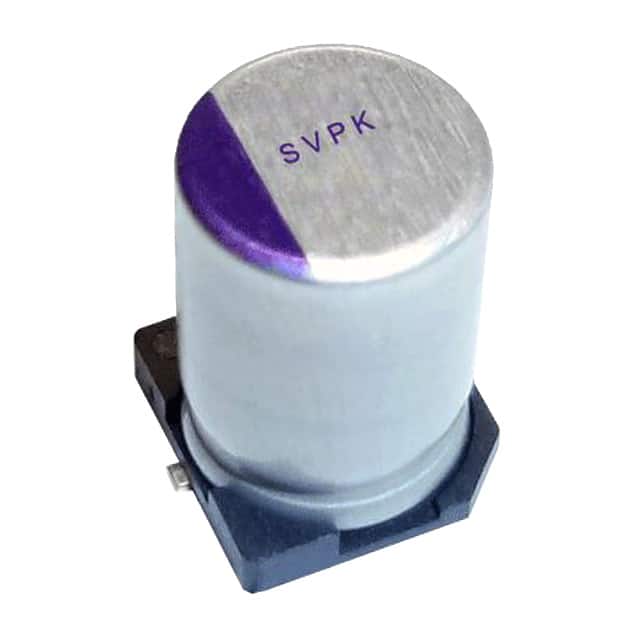

This Panasonic Electronic Components 50SVPK22M is an Aluminum - Polymer Capacitor from the OS-CON™, SVPK series. It features a capacitance of 22 µF with a tolerance of ±20% and is rated for 50 V.
The capacitor has an Equivalent Series Resistance (ESR) of 35mOhm and a rated lifetime of 1000 hours at 125°C. Its operating temperature range is -55°C to 125°C. The component is designed for general purpose applications.
Packaged in a Radial | Can - SMD configuration, this capacitor is designed for surface mount applications. Its dimensions are 6.30mm in diameter and 6.00mm in height. The land size for surface mounting is 6.60mm x 6.60mm.
Environmental compliance includes RoHS3 status. The part number is 50SVPK22M.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the 50SVPK22M is 22 µF.
The voltage rating for the 50SVPK22M is 50 V.
The ESR of the 50SVPK22M is 35mOhm.
The rated lifetime of the 50SVPK22M capacitor at 125°C is 1000 hours.
The operating temperature range for the 50SVPK22M capacitor is -55°C to 125°C.
The 50SVPK22M capacitor is in a Radial | Can - SMD package.
The mounting type for the 50SVPK22M capacitor is Surface Mount.
