| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

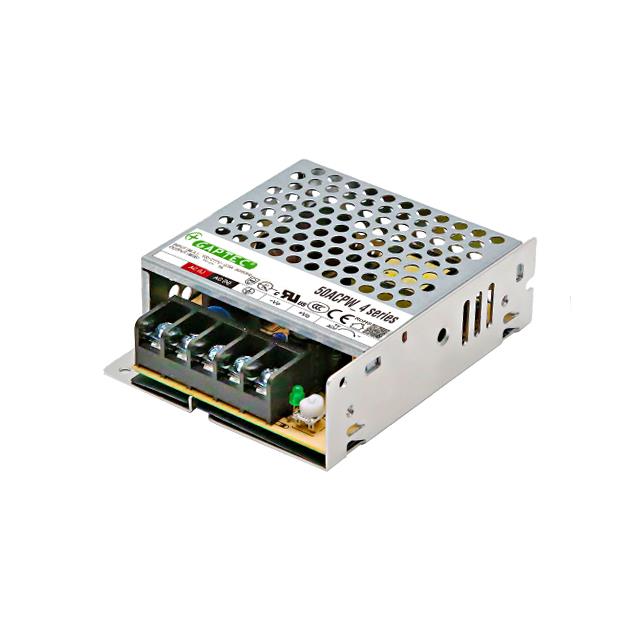

The GAPTEC Electronic 50ACPW_05S4 is an enclosed AC DC converter designed for various applications, including household appliances and ITE (Commercial) equipment. It provides a single 5VDC output with a current rating of 10A, resulting in a total power output of 50W. The converter boasts an efficiency of 83% and features adjustable output capability, along with DC input compatibility.
With an input voltage range of 85-305 VAC or 100-430 VDC, this unit offers flexibility in power sourcing. It includes 4 kV of isolation voltage and operates within a temperature range of -30°C to 70°C with derating. The dimensions are 99.0mm x 82.0mm x 30.0mm, and it is designed for chassis mounting.
Compliance is met with standards such as 60335-1 and 62368-1, and it is RoHS3 Compliant. The Moisture Sensitivity Level is rated as 1 Unlimited, and it is REACH Unaffected. Approval agencies include cURus and UL.
The input voltage range is 85-305VAC and 100-430VDC.
The output is 5VDC at 10A.
The power rating is 50W.
The operating temperature range is -30°C to 70°C with derating.
The isolation voltage is 4kV.
The efficiency is 83%.
The dimensions are 99.0mm x 82.0mm x 30.0mm.
