Mfr Part #:

508500B00000G

Name: 508500B00000G
Brand: Aavid, Thermal Division of Boyd Corporation
SKU: 508500B00000G

Description:

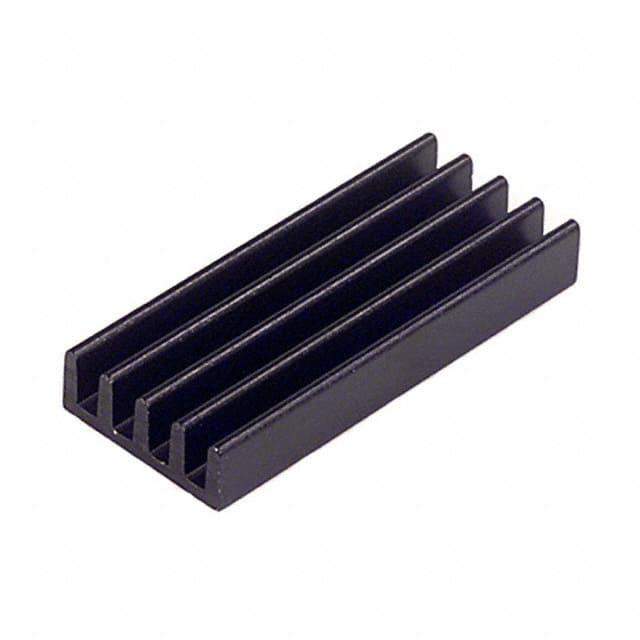

HEATSINK 24-PIN DIP GLUE-ON BLK

Stock on Request

508500B00000G Description

Short technical summary and product information.

HEATSINK 24-PIN DIP GLUE-ON BLK

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Heat Sinks
Manufacturer Name	Aavid, Thermal Division of Boyd Corporation
Attachment Method	Thermal Tape, Adhesive (Not Included)
Fin Height	0.190" (4.83mm)
Length	1.250" (31.75mm)
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	24-DIP
Power Dissipation @ Temperature Rise	1.0W @ 40°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	15.00°C/W @ 500 LFM
Thermal Resistance @ Natural	34.00°C/W
Type	Top Mount
Width	0.530" (13.46mm)
