| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,000 pcs
|
21000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| UL Flammability |

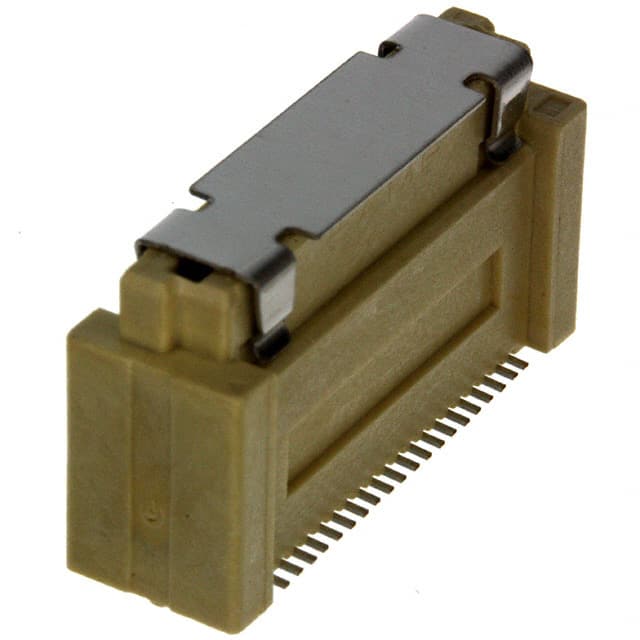

The TE Connectivity 5084616-1 is a 40-position receptacle-style board-to-board connector featuring outer shroud contacts. Designed for surface mount assembly, this connector uses a 0.80mm pitch and supports mated stacking heights of 13mm, 14mm, 15mm, and 16mm. The contacts are gold plated with 8.00 µin (0.203 µm) thickness for reliable electrical performance and corrosion resistance. The housing is molded from liquid crystal polymer (LCP) rated UL 94V-0 for flammability. The connector includes a board guide feature for alignment during assembly. Packaging is tape and reel for automated pick-and-place manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.82 | $3.82 |
| 10+ | $3.24 | $3.24 |
| 25+ | $3.04 | $3.04 |
| 50+ | $2.89 | $2.89 |
| 100+ | $2.76 | $2.76 |
| 200+ | $2.62 | $2.62 |
| 400+ | $2.50 | $2.50 |
| 600+ | $2.43 | $2.43 |
| 1,000+ | $2.34 | $2.34 |
| 1,400+ | $2.29 | $2.29 |
| 2,000+ | $2.23 | $2.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.80mm
40 positions
Surface mount
