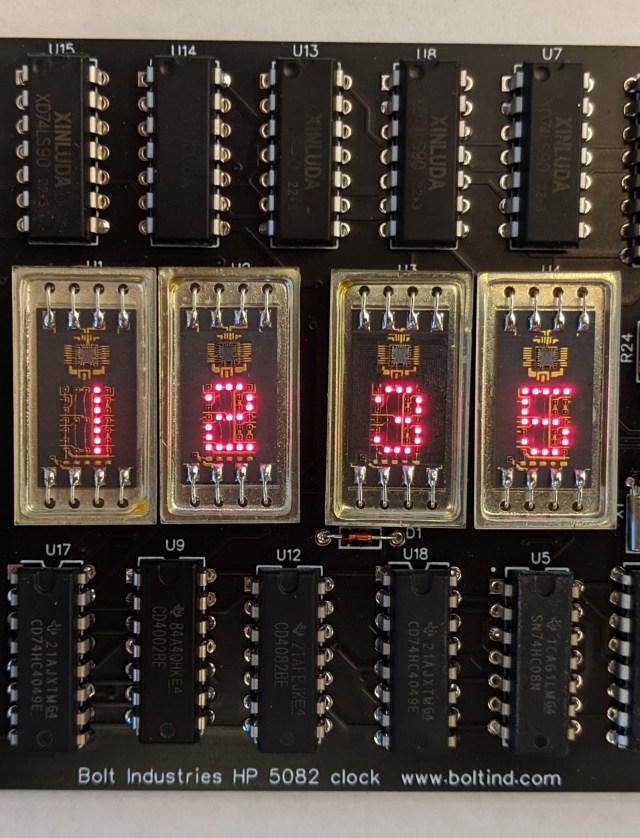

The Hewlett Packard 5082-7010 is a numerical LED clock module, noted as a second-generation smart numerical LED display. This component operates on a 5-volt power supply and utilizes a 4-bit, active low Binary Coded Decimal (BCD) input signal. An inverter, such as the 74HC4049, is required as an intermediary component for its operation.
This display is known for its aesthetically pleasing design, where the logic die, LED dies, and wire bonds are concealed beneath a small glass cover. The module is part of a project that includes schematics and PCB layout files available in JSON format, compatible with Easy EDA for modification or export.
Recent revisions of the associated clock circuit have incorporated USB-C connectivity and a 12/24 hour switch, while also resolving a bug related to second advancement by removing the blinking decimal point. The original Hewlett Packard 5082-7010 is a vintage component, with some sources indicating availability from specialized eBay sellers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Hewlett Packard 5082-7010 numerical LED clock operates on 5 volts.
The 5082-7010 uses a 4-bit, active low Binary Coded Decimal (BCD) input signal.
