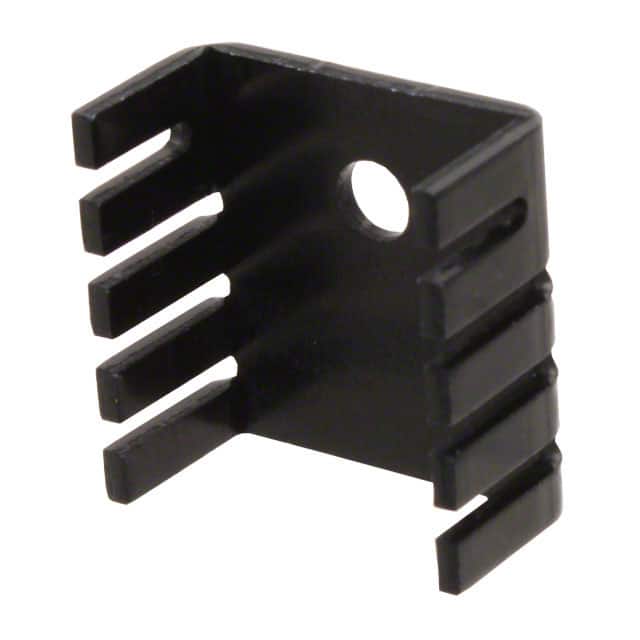

This board level heat sink is designed for cooling TO-220 semiconductor packages. It features a square finned shape made from aluminum with a black anodized finish for enhanced thermal performance and corrosion resistance. The heat sink measures 19.05mm (0.750") in both length and width, with a fin height of 9.65mm (0.380"). It attaches via bolt-on method.
Thermal performance: 24.00°C/W in natural convection, improving to 10.00°C/W at 200 LFM forced air flow. Power dissipation is rated at 2.5W for a 60°C temperature rise. Suitable for low-profile applications where space is limited.
The heat sink is listed as RoHS3 compliant and has MSL 1 unlimited moisture sensitivity level. It is manufactured by Aavid, Thermal Division of Boyd Corporation.
