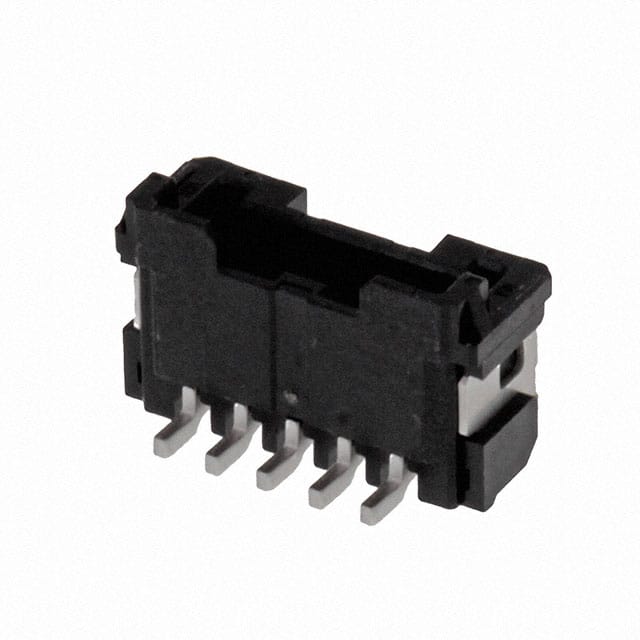

The Molex 5055750571 is a 5-circuit, single row, vertical PCB header part of the Micro-Lock Plus wire-to-board connector system. It utilizes a 2.00mm pitch and is designed for surface mount termination. The header features a shrouded 4-wall design with a locking ramp for secure mating with Micro-Lock Plus receptacle housings. Contacts are made of brass with matte tin plating providing a minimum plating thickness of 1.00µm on both mating and termination interfaces. The insulator is black polyamide (PA/Nylon) with a UL94 V-0 flammability rating . The header is polarized to both the mating part and the PCB to ensure correct orientation during assembly. Solder retention features aid in reliable surface mount attachment. The operating temperature range is -40°C to +105°C. This component is rated for up to 3.0A per contact and 250V AC (RMS)/DC. Typical applications include signal and power interconnections in wire-to-board configurations where a compact, positive-locking interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
| 10+ | $0.98 | $0.98 |
| 100+ | $0.83 | $0.83 |
| 600+ | $0.82 | $0.82 |
| 1,200+ | $0.78 | $0.78 |
| 1,800+ | $0.75 | $0.75 |
| 3,000+ | $0.73 | $0.73 |
| 4,200+ | $0.71 | $0.71 |
| 6,000+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm on both the mating interface and termination interface.
It has 5 positions (circuits), all loaded.
The maximum current per contact is 3.0A.
The maximum voltage is 250V AC (RMS)/DC.
It uses surface mount (SMD) termination.
Yes, it is a shrouded header with a 4-wall design for mating protection.
The operating temperature range is -40°C to +105°C.
