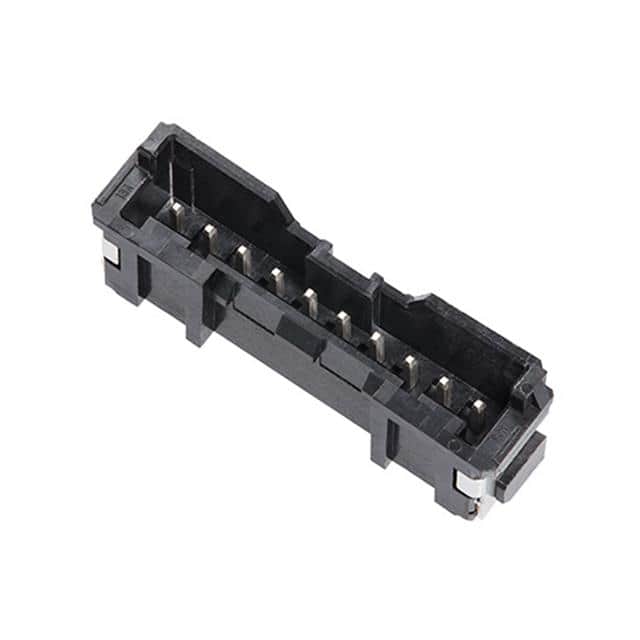

The Molex 505575-0771 is a Micro-Lock PLUS vertical header designed for wire-to-board signal applications. It has 7 circuits arranged in a single row with a 2.00mm pitch. The header is surface mount compatible and comes in a black polyamide housing.
This header is rated for 3.0A maximum current per contact and 250V AC/DC maximum voltage. It operates over a temperature range of -40°C to +105°C. The contacts are made of brass with a minimum matte tin plating thickness of 1.0µm.
The header includes a locking feature for secure mating, and is polarized to both the mating part and the PCB. It features PCB retention and is rated for up to 30 mating cycles. The component is delivered in embossed tape on reel packaging suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 600+ | $0.75 | $0.75 |
| 1,200+ | $0.73 | $0.73 |
| 2,400+ | $0.71 | $0.71 |
| 8,400+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 7 positions (circuits).
The pitch is 2.00mm.
The maximum current per contact is 3.0A.
The maximum voltage is 250V AC (RMS)/DC.
It is a surface mount (SMT) header.
The operating temperature range is -40°C to +105°C.
It is rated for 30 mating cycles maximum.
