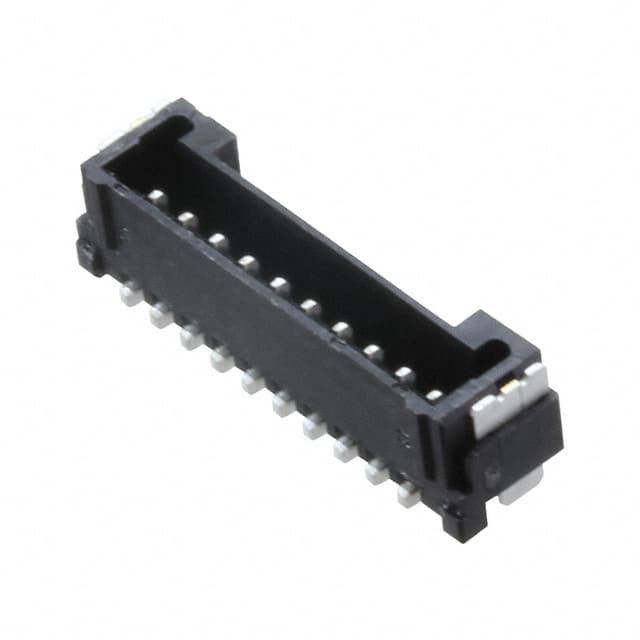

The Molex 5055681071 is a 10-circuit, single-row, vertical PCB header from the Micro-Lock Plus wire-to-board connector system. It features a 1.25mm pitch and is designed for surface mount termination with solder tails. The header is shrouded with four walls and includes a positive locking mechanism for secure mating. Contacts are made of brass with a Tin-Bismuth plating, providing a current rating of 1.5A per contact and a voltage rating of 50V AC/DC. The operating temperature range is -40°C to 105°C. The insulator is black polyamide with UL94 V-0 flammability rating. The header is polarized and includes PCB retention features. It is packaged in embossed tape on reel for automated assembly, with a vacuum pick-up tape for robotic placement. This header is suitable for wire-to-board applications in various electronic devices requiring reliable connections in compact spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 10+ | $1.03 | $1.03 |
| 100+ | $0.88 | $0.88 |
| 500+ | $0.78 | $0.78 |
| 1,200+ | $0.68 | $0.68 |
| 2,400+ | $0.65 | $0.65 |
| 3,600+ | $0.63 | $0.63 |
| 6,000+ | $0.61 | $0.61 |
| 8,400+ | $0.59 | $0.59 |
| 12,000+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
1.25mm (0.049").
1.5A per contact.
50V AC/DC.
Surface mount.
-40°C to 105°C.
30 mating cycles.
