| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

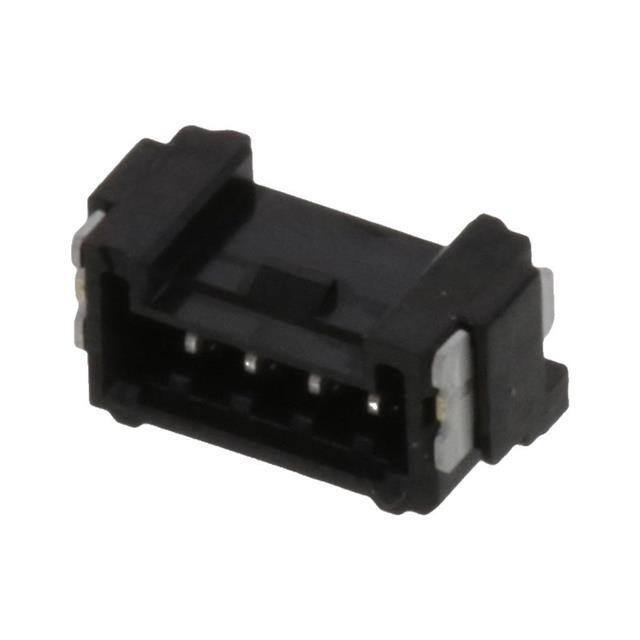

The Molex 5055680431 is a 4-position single row shrouded male pin header with a 1.25mm pitch, designed for board-to-cable/wire connections. It features a surface mount termination with solder retention and pick and place capabilities, facilitating automated assembly.
The connector is fully shrouded with a 4-wall design and push-pull fastening, ensuring reliable mating. Contacts are brass with gold plating (15.0µin thickness) for corrosion resistance and low contact resistance. The insulation is black polyamide (nylon) glass filled, rated UL94 V-0 for flammability.
Electrical specifications include a voltage rating of 50V AC/DC and an operating temperature range of -40°C to 105°C. The current rating depends on the wire gauge used. The component is compliant with RoHS3 and REACH, with an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.13 | $1.13 |
| 10+ | $0.96 | $0.96 |
| 100+ | $0.82 | $0.82 |
| 500+ | $0.73 | $0.73 |
| 1,200+ | $0.78 | $0.78 |
| 2,400+ | $0.75 | $0.75 |
| 3,600+ | $0.73 | $0.73 |
| 6,000+ | $0.70 | $0.70 |
| 8,400+ | $0.68 | $0.68 |
| 12,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1.25mm.
50V AC/DC.
Surface mount.
Varies by wire gauge.
-40°C to 105°C.
Gold with 15.0µin thickness.
