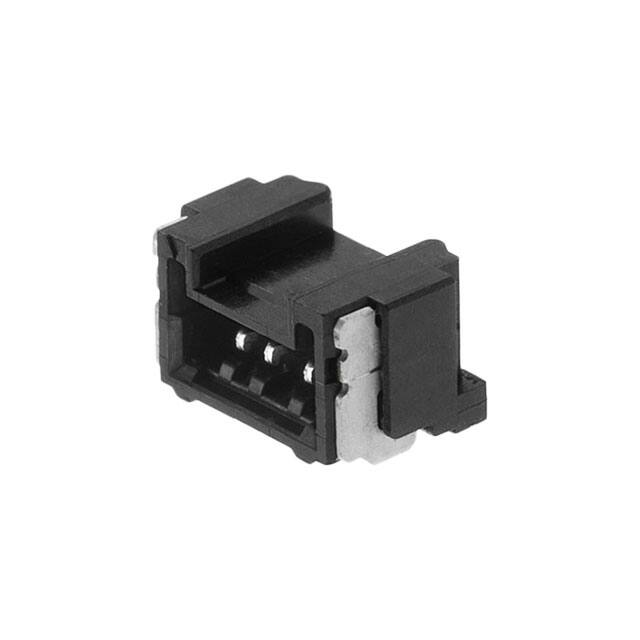

The Molex 5055670371 is a 3-position, single-row header from the Micro-Lock Plus wire-to-board connector system. It features a 1.25mm pitch and a surface mount, right-angle termination for compact PCB designs. The connector is fully shrouded with a 4-wall design and includes a locking ramp fastening type for secure mating retention.
This header is rated for 50V AC/DC and has a maximum current rating of 3.6A per circuit (tested with 2 circuits and AWG 26 wire). It operates over a temperature range of -40°C to 105°C. The contacts are made of brass with a tin finish, and the insulator is black polyamide (nylon) with glass filling, rated UL94 V-0 for flammability.
Designed for automated assembly, the header includes pick-and-place and solder retention features. It is RoHS3 compliant and low halogen. The packaging is embossed tape on reel suitable for SMT placement.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.93 | $0.93 |
| 10+ | $0.79 | $0.79 |
| 100+ | $0.67 | $0.67 |
| 500+ | $0.61 | $0.61 |
| 1,200+ | $0.56 | $0.56 |
| 2,400+ | $0.56 | $0.56 |
| 4,800+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.25mm.
The voltage rating is 50V AC/DC.
The mounting type is Surface Mount, Right Angle.
It has 3 positions in a single row.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant.
The maximum current rating is 3.6A per circuit when using 2 circuits with AWG 26 wire.
