| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination |

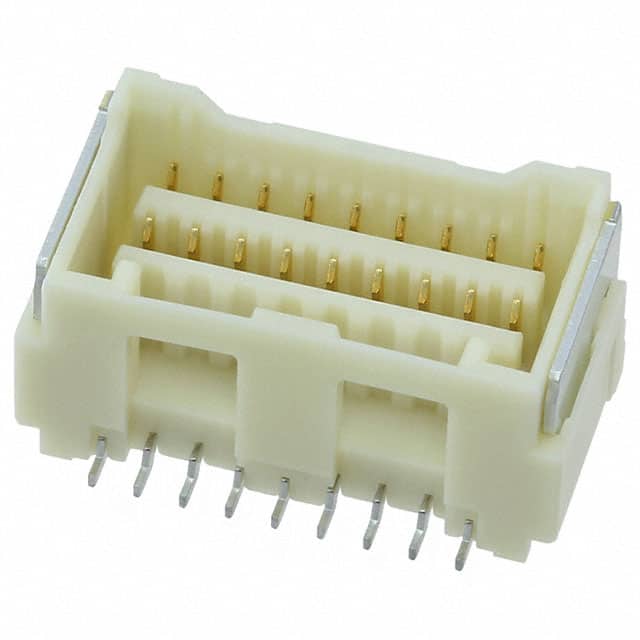

The Molex 5054061860 is a surface mount receptacle connector designed for board to cable/wire interconnections. It features 18 positions arranged in 2 rows with a 1.50mm pitch, making it suitable for compact electronic assemblies. The connector uses forked contacts with a tin finish and a contact finish thickness of 8.00µin (0.203µm).
The housing is beige in color with an insulation height of 8.75mm (0.344"). It includes a latch holder fastening type for secure mating and solder retention features to improve mechanical reliability during assembly. The operating temperature range is -40°C to 105°C.
The connector is rated UL94 V-0 for material flammability. Termination is via solder, and the mounting type is surface mount. This part is RoHS3 compliant and has an MSL of 1 (Unlimited).
The pitch is 1.50mm (0.059").
It has 18 positions arranged in 2 rows.
Surface mount with solder termination.
-40°C to 105°C.
Tin with a thickness of 8.00µin (0.203µm).
