| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,432 pcs
|
27432 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel |

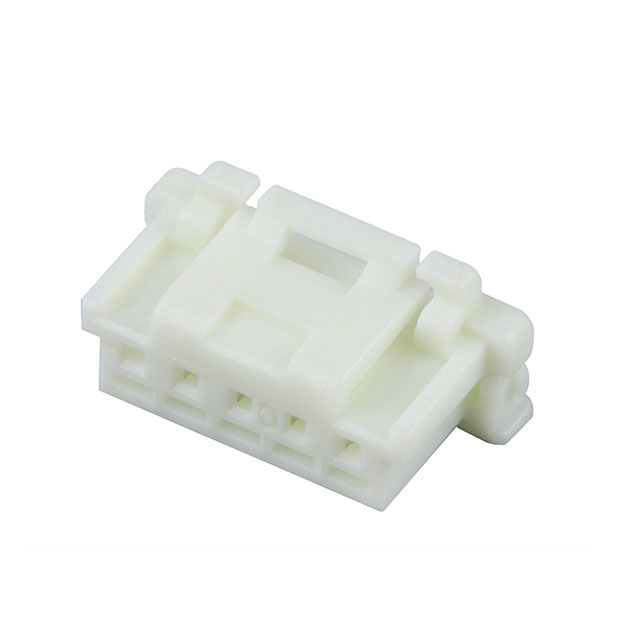

The Molex 5051510501 is a 5-position rectangular connector housing designed for use in 2.00mm pitch connector systems. This receptacle housing accepts female socket contacts (sold separately) and features a latch holder fastening mechanism for secure mating with male headers. The housing is configured for free hanging (in-line) mounting, making it suitable for cable-to-cable or cable-to-board connections.
Key specifications include a single row layout with 5 positions, 2.00mm pitch, and crimp termination for the contacts. The housing is white in color and operates over a temperature range of -40°C to 125°C, allowing use in a variety of environments. The component is claimed to be RoHS3 compliant, though this has not been independently verified.
This housing is part of Molex's connector family and is intended for applications requiring compact, reliable interconnections. The latch holder provides positive retention, and the free hanging design offers flexibility in routing. Contacts must be ordered separately and crimped before insertion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.22 | $0.22 |
| 25+ | $0.19 | $0.19 |
| 100+ | $0.19 | $0.19 |
| 250+ | $0.17 | $0.17 |
| 1,000+ | $0.16 | $0.16 |
| 2,500+ | $0.15 | $0.15 |
| 5,000+ | $0.15 | $0.15 |
| 10,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The housing has 5 positions in a single row.
The pitch is 2.00mm.
The mounting type is Free Hanging (In-Line).
The fastening type is Latch Holder.
It accepts Female Socket contacts.
The contact termination is Crimp.
The operating temperature range is -40°C to 125°C.
