| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Type | |
| FFC, FCB Thickness | |
| FFC/FPC Thickness | |
| Features | |
| Flammability Rating | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

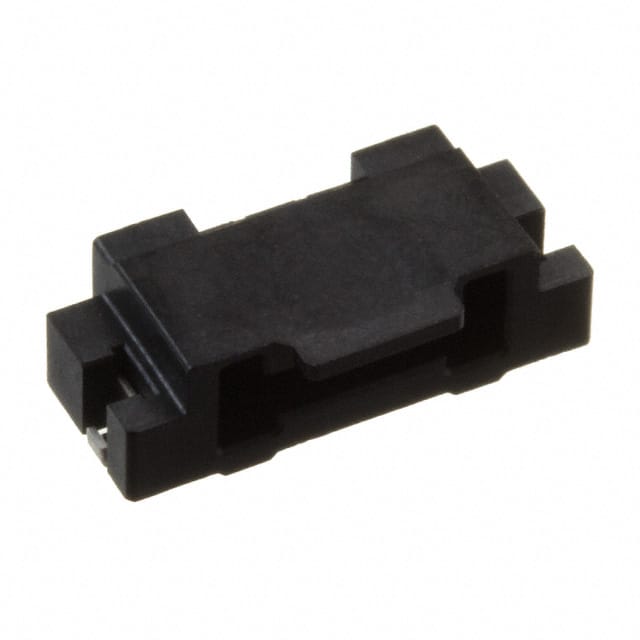

The Molex 5051470290 is a 2 position FPC (Flat Flexible Circuit) connector featuring bottom contacts and a 2.00mm pitch. It is designed for surface mount right angle mounting, making it suitable for compact PCB layouts where space is limited. The connector uses solder termination and includes a solder retention feature for secure attachment during assembly.
The contacts are made of copper alloy with a gold finish, ensuring reliable electrical connections and corrosion resistance. The housing is constructed from liquid crystal polymer (LCP) glass filled material, rated UL94 V-0 for flammability. The operating temperature range is -40°C to 125°C, and the voltage rating is 50V. The connector accepts FPC cables with a thickness of 0.30mm and features a tapered cable end type for easier insertion.
This connector is part of Molex's FPC connector family and is commonly used in consumer electronics, automotive, and industrial applications where flexible circuit interconnects are required. The right angle orientation allows for low-profile connections, with a height above board of 4.85mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.64 | $0.64 |
| 25+ | $0.57 | $0.57 |
| 100+ | $0.54 | $0.54 |
| 250+ | $0.48 | $0.48 |
| 900+ | $0.44 | $0.44 |
| 1,800+ | $0.43 | $0.43 |
| 4,500+ | $0.38 | $0.38 |
| 9,900+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 2 positions.
The pitch is 2.00mm.
The voltage rating is 50V.
It uses surface mount, right angle mounting.
The operating temperature range is -40°C to 125°C.
The contacts have a gold finish.
The housing is liquid crystal polymer (LCP) glass filled with UL94 V-0 flammability rating.
