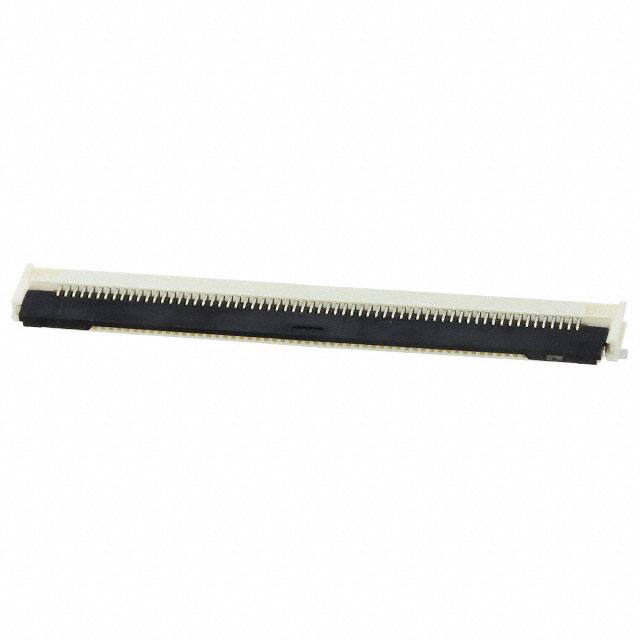

5051106491 Molex 5051106491 is a 64-position, 0.5mm pitch FFC/FPC connector with surface mount right angle termination, gold-plated phosphor bronze contacts, and a flip lock actuator.
Mfr Part #:

5051106491

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 5051106491 is a 64-position, 0.5mm pitch FFC/FPC connector with surface mount right angle termination, gold-plated phosphor bronze contacts, and a flip lock actuator.
✓ Total Stock: 1 pcs
$ Price Range: $1.78 - $3.43

5051106491 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5051106491 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Lead Spacing
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

5051106491 Description

Short technical summary and product information.

The Molex 5051106491 is a 64-position FFC/FPC connector designed for reliable flat flexible cable interconnections. It features a 0.50mm pitch and a surface mount, right angle mounting style, making it suitable for compact PCB layouts where space is at a premium.



The connector utilizes a zero insertion force (ZIF) flip lock mechanism for easy cable insertion and secure retention. Contacts are gold-plated phosphor bronze for reliable conductivity, and the housing is made of glass-filled liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The actuator is glass-filled polyamide (nylon).



This connector supports FFC and FPC cables with a thickness of 0.30mm and features solder retention for robust board attachment. It is rated for 50V and operates over a temperature range of -40°C to 105°C. The bottom contact design is suitable for tabbed, tapered cable ends.

5051106491 Quick Information

Product Type: FFC/FPC Connector Assembly
Series: Easy-On FD19
Canonical Name: Molex 5051106491 FFC/FPC Connector, 64 Position, 0.5mm Pitch, Surface Mount, Right Angle
Subcategory: FFC, FPC (Flat Flexible) Connector Assemblies

5051106491 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5051106491 Estimated Pricing

Qty Low High
1+ $3.43 $3.43
10+ $3.00 $3.00
25+ $2.68 $2.68
100+ $2.55 $2.55
250+ $2.40 $2.40
500+ $2.22 $2.22
1,000+ $2.05 $2.05
3,000+ $1.94 $1.94
6,000+ $1.78 $1.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

5051106491 Features

  • 64 positions with 0.50mm pitch spacing.
  • Surface mount right angle mounting style.
  • Zero insertion force flip lock actuator.
  • Gold-plated phosphor bronze contacts.
  • Rated for 50V and -40°C to 105°C.

5051106491 Applications

  • Ideal for compact PCB interconnect designs.
  • Used in consumer electronics and data devices.
  • Suitable for automotive and industrial controls.
  • Connects flat flexible cables in tight spaces.

5051106491 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 5051106491 have?

64 positions.

What is the pitch of this connector?

0.50mm (0.020").

What is the mounting type?

Surface mount, right angle.

What is the voltage rating?

50V.

What is the operating temperature range?

-40°C to 105°C.

What type of actuator does it have?

Flip lock (ZIF).

What is the contact finish?

Gold.
